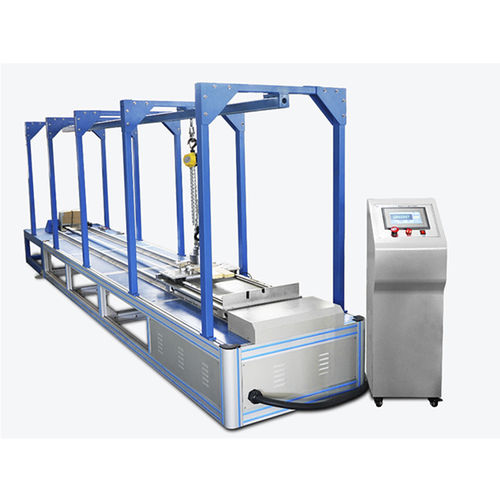

Scooter Horizontal Impact Testing Machine
Minimum1 SET
Delivery15 days after order.
ModelHD-1052DB
CountryChina
BrandNameHD
PackageEach set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
PaymentL/C, D/P, T/T
PriceFOB, CIF
DESCRIPTION
Scooter Horizontal Impact Testing Machine is used to damage the wheel or brake after the scooter or brake is impacted by foreign objects. During the test, the steel plate is struck at a certain load with a certain load to check the damage of the scooter. PLC control, the number of times can be arbitrarily set, the speed can be arbitrarily selected. The guide rail is thick and the collision site is thick.
DESIGN STANDARD
EN71,EN13899,EN13843,GB20096
STANDARD FEATURES
Item
Description
Test speed
1-5m/adjustable
Weight
According to standard
Speedometer
7 inch touch screen display
Motor power
Panasonic servo motor 1.5KW
Machine dimension
(L*W*H) 4800**650*1020mm
Machine weight(Approx.)
500kg
Impact weight
E=1/2MV>2
