Laser light source PLP-10 series
visiblepulsedfor fiber optics

laser light source
laser light source
Add to favorites
Compare this product


Illumination technology
Other characteristics
Technical applications
for fiber optics
Output power

Max.: 0.6 W
(0.00082 hp)

Min.: 0.01 W
(0.00001 hp)


Max.: 1,550 nm

Min.: 375 nm

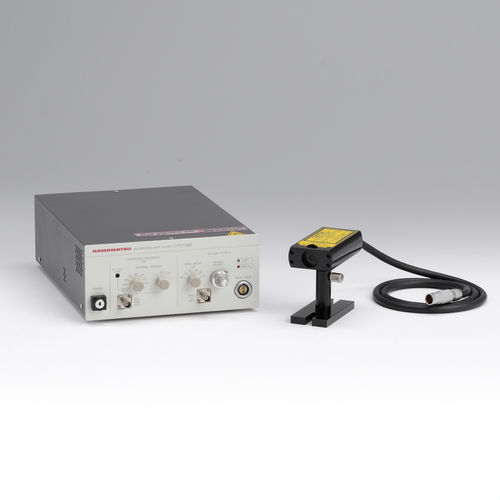

The PLP-10 is an ultrashort pulsed light source that utilizes a laser diode (LD). It consists of an LD head and a controller. 13 types of LD head are available to accommodate various wavelengths, enabling optical output over a broad wavelength range of 375 nm to 1550 nm. PLP-10 is an ideal light source for measuring the response of a photodetector device, the characteristics of optical recording device or the lifetime measurement. Optical output is selectable from window output or FC connector output. Features • Ultrashort pulses 50 ps to 130 ps FWHM (typ.) • High-repetition frequency up to 100 MHz • Stable output power and oscillation timing • Built-in trigger delay Applications • Excitation light source for fluorescence lifetime measurements • Excitation light source for LIF • Pulse response measurement of high-speed photodetectors • Evaluation of an optical recording device • Photochemical reaction • Spectrum analysis • Frequency characteristics of POF communication • Evaluation of magnetic optical characteristic • Alternate light source of He-Cd / Ar laser • Evaluation of macromolecule new material
