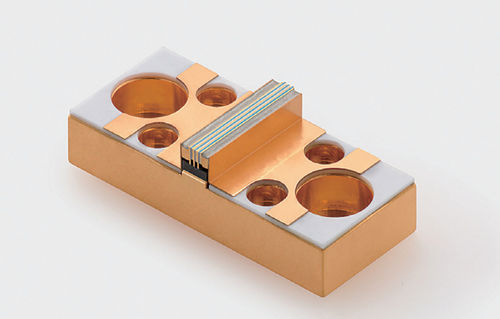

Pulsed laser diode bar L13459-01

solid-stateinfraredpumping

This is a laser diode (LD) bar module with a peak radiant power of 300 W. By stacking the LD bars at a narrow pitch, high-density laser beam can be realized. In addition, the compact package provides a higher design flexibility when assembling equipment. It can be used in a variety of applications requiring high-peak power, including solid state laser pumping. Spec • Type number : L13459-01 • Type : Pulsed Stack Modules • Peak emission wavelength min. : 795 nm • Peak emission wavelength typ. : 798 nm • Peak emission wavelength max. : 801 nm • Pulsed radiant power typ. : 300 W • Spectral radiation half bandwidth typ. : 4 nm • Operating current typ. : 100 A • Operating voltage typ. : < 6.5 V • Beam spread angle _parallel typ. : < 11 ° • Beam spread angle _vertical typ. : < 26 ° • Lasing threshold current typ. : 16 A • Stack pitch : 0.4 mm • Max. number of stack : 3 • Operating temperature : + 5 to + 35 ℃ • Storage temperature : - 20 to + 40 ℃ • Package : Multiple Stack Open Heatsink Type
