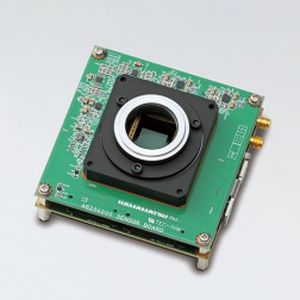

The C11440-52U30 is a compact and highly sensitive board level camera with a scientific CMOS sensor. The camera has over 80 % quantum efficiency. The camera runs at 30 frames/s at full resolution and it can reach up to 25 655 frames/s (512 × 8 ROI). This enhanced QE means that you have a possibility of detecting the faintest of signals. Or, for moderately dim samples, that the ideal image is achievable with shorter exposure times.
The C11440-52U30 has low camera noise of 2.3 electrons (rms) at 30 frames/s. The compact (90 mm × 90 mm) and light weight design is idea for integration into various measurement and analytical instruments. In addition to that the camera employs a USB 3.0 digital interface for convenience and compatibility.
Features
• Resolution: 4.0 megapixels
• Readout noise: 2.3 electrons (rms), 1.6 electrons (median)
• Frame rate: 30 frames/s (2048 × 2048)
• Quantum efficiency: 82 % (Peak QE)
Applications
• DNA sequence
• Gene expression
• Imaging cytometry
• High content screening
• Live cell imaging
• Genomic and proteomic analysis and diagnostics
• X-ray I.I., X-ray scintillator readout
Specifications
• Type number : C11440-52U30
• Imaging device : Scientific CMOS image sensor
• Effective no. of pixels : 2048 (H)×2048 (V)
• Effective area : 13.312 mm (H)×13.312 mm (V)
• Full well capacity : 30 000 electrons (typ.)
• Readout speed : 30 frames/s (Full resolution) to 25 655 frames/s (512×8 ROI)
• Readout noise : 2.3 electrons (rms) typ., 1.6 electrons (median)typ. *2
• Exposure time : 1 ms to 30 s (Internal trigger mode, Full resolution)*3
• Dynamic range : 18 000:1 typ.*1
• Sub-array : Yes
