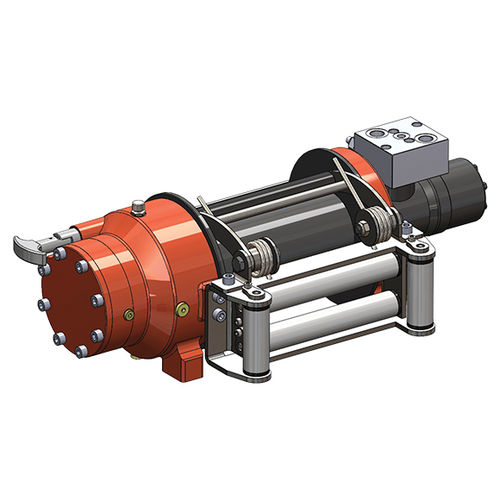

Hydraulic winch HMW 4.0 PHTpullingfor vehiclesgear
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Type
- wire rope
- Application
- pulling
- Products applications
- for vehicles
- Other characteristics
- gear, with brake
- Capacity
2,430 kg, 2,695 kg, 3,024 kg, 3,445 kg, 4,000 kg
(5,357.2 lb, 5,941.5 lb, 6,666.8 lb, 7,594.9 lb, 8,818.5 lb)- Speed
14,000 mm/min, 16,000 mm/min, 18,000 mm/min, 21,000 mm/min, 23,000 mm/min
(9.2 in/s, 10.5 in/s, 11.8 in/s, 13.8 in/s, 15.1 in/s)- Cable length
8.4 m, 17.8 m, 28.3 m, 40.6 m, 53.8 m
(27'06" , 58'04" , 92'10" , 133'02" , 176'06" )- Pressure
140 bar
(2,030.53 psi)- Flow
60 l/min
(15.85 us gal/min)- Weight
54 kg
(119.05 lb)
Description
• Extra reinforced aluminium cast body through the heat treatment and industrial design.
• Light and robust design.
• 100% Holding negative-acting hydraulic brake system.
• Standard pressure roller and roller fairlead.
• Easy assembly, high rope capacity and high torque hydromotor
• Standard manual rope unloading system
• CE Machinery Directive 2006/42/EC
• Meets SAE J706 rating
