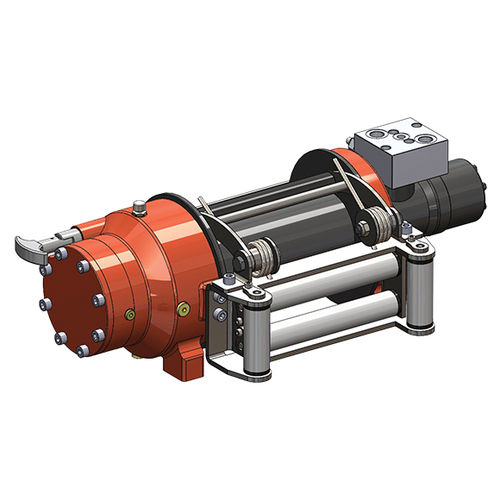

Hydraulic winch HMW 5.0 PHT
pullingfor vehiclesgear

hydraulic winch
hydraulic winch
hydraulic winch
hydraulic winch
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Type
wire rope
Application
pulling
Products applications
for vehicles
Other characteristics
gear, with brake
Capacity

3,187 kg, 3,625 kg, 4,203 kg, 5,000 kg
(7,026.1 lb, 7,991.8 lb, 9,266 lb, 11,023.1 lb)

Speed

11,000 mm/min, 13,300 mm/min, 15,400 mm/min, 17,500 mm/min
(7.2 in/s, 8.7 in/s, 10.1 in/s, 11.5 in/s)

Cable length

7.1 m, 15.4 m, 25 m, 35.5 m
(23'03" , 50'06" , 82'00" , 116'05" )

Pressure

135 bar
(1,958.01 psi)

Flow

60 l/min
(15.85 us gal/min)

Weight

54 kg
(119.05 lb)

Description

• Extra reinforced aluminium cast body through the heat treatment and industrial design. • Light and robust design. • 100% Holding negative-acting hydraulic brake system. • Standard pressure roller and roller fairlead. • Easy assembly, high rope capacity and high torque hydromotor • Standard manual rope unloading system • CE Machinery Directive 2006/42/EC • Meets SAE J706 rating
