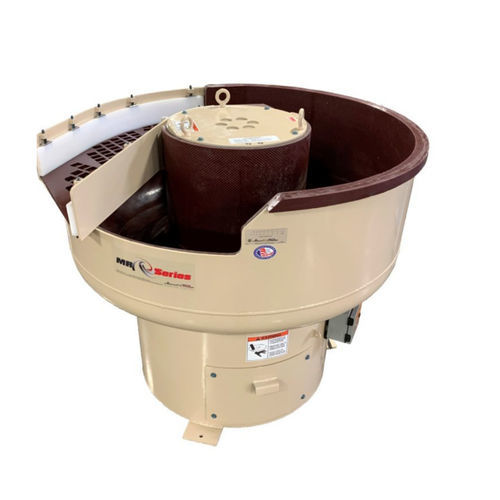

Finishing vibratory finishing machine MR-20-FB

centrifugalsemi-automaticautomatic

The MR Series is a robust vibratory bowl finishing machine built to handle continuous duty operation. Hammond Roto-Finish’s proven welded-construction design was reimagined in 2011 to simplify manufacturing without sacrificing durability. The MR Series combines that innovative design with high-end features. The MR-20 is available in four models; Manual, Semi-Auto, Automatic, and Accelerated Chemistry. General machine data and features are laid out below. Machine Features: Max operating capacity 17.0ft3 (481 L) Heavy-duty 3/16” (4.75mm) welded construction Main bowl construction component is a pressure vessel tank head U shaped process channel with textured, straight wall polyurethane lining Polyurethane lining is a minimum 5/8” (15.5mm) thick, with 50% additional in high wear areas Bowl is suspended on heavy duty coil springs Two (2) sets of pop-in drains: solid, 1/16” (1.5mm), 1/8” (3mm) & 1/4” (6.5mm) slots Parts separation system with pneumatically operated gate Water-driven compound system – mixes between 0% and 5% concentration 19 mm socket included for changing eccentric weights Integrated lifting eyes Grease lubrication Available voltages: 230 VAC / 460VAC, 3ph, 60hz
