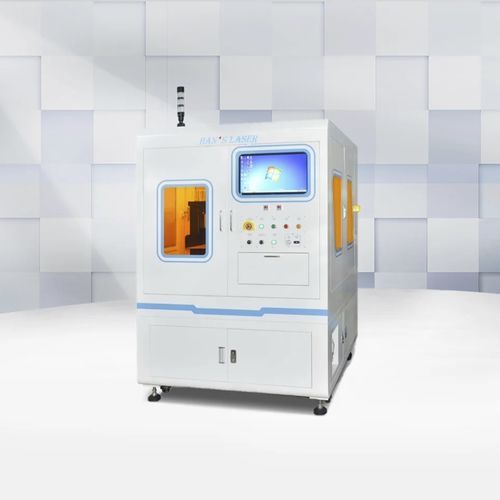

Fiber laser marking machine HDZ-FPC4530D

UV laserfor plasticsfor the microelectronics industry

Machine Features

• Automatic loading and unloading for stacked FPC, automatic positioning and marking, automatic code reading and proofreading, automatic transfer of film or separation paper
• Dual-station processing for continuous workflow, fast station switching and efficient throughput

Applications
Applicable to marking of tracing information such as copper foil, FPC steel sheet, PI, CVL, barcode, QR code and characters on FPC flexible boards used in mobile digital products, wearable devices, automotive electronics and related manufacturing sectors.

Technical Data Sheet
Model: HDZ-FPC4530D
Laser Type: Green laser, UV laser, fiber laser
Laser Marking Area: 50 mm × 50 mm
Applicable Substrate Size: 100 mm × 100 mm – 300 mm × 450 mm
Applicable Substrate Thickness: 0.036 mm – 1.6 mm
Processing Side: One side
Final Positioning Accuracy: ±0.1 mm (CCD locating)
Supported File Formats: DXF, PLT
Cooling Mode: Air cooling / Water cooling
System Integration: Compatible with MES/IMS/PMS/ERP systems
Overall Dimensions: 1300 mm × 1600 mm × 2200 mm

Specifications

• Model: HDZ-FPC4530D
• Laser Type: Green laser, UV laser, fiber laser
• Laser Marking Area: 50 mm × 50 mm
• Applicable Substrate Size: 100 mm × 100 mm – 300 mm × 450 mm
• Applicable Substrate Thickness: 0.036 mm – 1.6 mm
• Processing Side: One side
• Final Positioning Accuracy: ±0.1 mm (CCD locating)
• Supported File Formats: DXF, PLT
• Cooling Mode: Air cooling / Water cooling
• System Integration: Compatible with MES/IMS/PMS/ERP systems
• Overall Dimensions: 1300 mm × 1600 mm × 2200 mm
