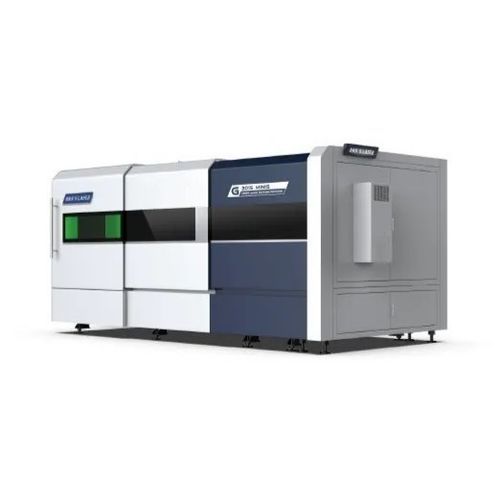

2D laser cutting machine G3015 MINI S

for steelfor carbon steelsheet metal

The G3015 MINI S is a compact smart laser cutting machine designed for a reduced footprint, simple installation and maintenance, and efficient use of production space.

Overview
The MINI S provides maintenance-friendly access, an adjustable operator terminal and multiple door configurations (front door and long side sliding door) for flexible loading and faster demo-cut response times. The machine offers an expanded cutting area suitable for American (inch) sheet sizes.

Key features

• Laser safety: Fully enclosed structure with OD 5+ laser glass windows to protect operators from laser radiation; reduces noise and cutting fume exposure to improve on-site safety.
• Accessible: Adjustable control terminal plus front and long-side sliding doors for easier loading/unloading of small parts and quicker demo cuts.
• Compact design: Main frame integrates electrical cabinet, laser source, pneumatic and lubrication systems, and table drive motors to minimize footprint and simplify installation and maintenance.
• Work-environment friendly: Zoned dust extraction system that intelligently distributes airflow per partition, improving dust removal and protecting the cutting head to keep the work area clean.
• Lower gas consumption: Low N2 pressure cutting enables faster cutting speeds, shorter cycle times for equivalent batches and up to 67% gas savings.
• Mix-M device (optional): Han’s Laser patented gas-mixing cabinet (recommended for ≥20 kW lasers) for rapid cutting of 10–40 mm carbon steel; improves cut quality, reduces corner slag and increases workpiece accuracy and processing efficiency.

Technical specifications

• Model: G3015 MINI S
• Working area: 3100 mm × 1550 mm
• Max. axis positioning speed (X / Y): 120 m/min
• Max. acceleration: 1.5G
• Positioning precision: 0.05 mm / m
• Repeatability: 0.03 mm
• Max. sheet weight: 2150 kg / table
• Available laser power options: 3 kW / 6 kW / 12 kW
