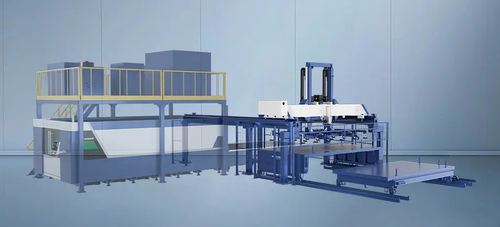

Automatic sheet metal loader SL series

Overview
The SL series semi-automatic loading unit combines automated loading/unloading, vacuum feeding, integrated CNC cutting and material handling into a single production-ready solution. Designed for industrial production lines, it enables semi-automated order-to-process workflows that reduce manual handling, improve throughput and simplify integration with higher-level production management systems.

System Features

• Fully automatic sheet loading with maximum loading gauge up to 40 mm.
• Vacuum loading system and suction-cup feeding for precise, repeatable pick-and-place operations.
• Laser automation and scheduling interface to automate order-to-process tasks, material transfer and machining sequences.

Main Parts
The feeding unit comprises a raw material truck, gantry main frame, truss assembly, feeding device with vacuum suction cups, sorting car combination and a centralized control system for coordinated operation.

Gantry
Gantry main-frame components are welded from profiles and undergo welding → rough machining → vibration aging → precision machining to relieve welding stress and ensure positional stability. Bridge beams feature finely machined flat guide surfaces for reliable crossbeam movement.

Truss
The truss assembly includes the truss structure, transmission mechanism, guide devices and bearings. Two servo motors independently drive crossbeam travel and the material-tray lifting mechanism. Horizontal truss motion on the gantry uses cam-bearing guidance for smooth tracking.

Vacuum Suction Cup Feeding Device
The feeding mechanism uses a welded main frame with transmission guides and multiple vacuum suction cups. Each cup is independently controlled by solenoid valves to adapt to board dimensions for fast, accurate pickup. Safety features include travel limit sensors and anti-collision devices for secure lifting operations.

Raw Material Truck
The line includes a 4-ton raw material truck that travels on a guided track for automated material loading. Configured as a raw material or sorting truck, it replaces static storage, enables low-cost automated feeding, and supports centralized or single-sheet sorting workflows.

Cutting Capacity

• Example: stainless steel up to 12 mm (application dependent).

Technical Data Sample (for reference only; subject to actual technical documents)
Model / Speed (loading unit) / Hoist Speed (loading unit) / Max. Loading Format / Max. Load Weight (sorting car) / Speed (sorting car) / Max carry-on weight
SL-3015 / 60 m/min / 8 m/min / 3000*1500*40 / 4 t / 20 m/min / 1400 kg
SL-4020 / 60 m/min / 8 m/min / 4000*2000*40 / 4 t / 20 m/min / 2500 kg

Specifications

• Series name: SL Series (semi-automatic loading/unloading & feeding unit integrated with CNC cutting workflow).
• Maximum sheet thickness for loading: up to 40 mm.
• Loading unit speed: 60 m/min.
• Hoist speed (loading unit): 8 m/min.
• Max. loading formats (examples): 3000 x 1500 x 40 mm, 4000 x 2000 x 40 mm.
• Max. load weight (sorting car): 4 t.
• Sorting car speed: 20 m/min.
• Max. carry-on weight examples: 1400 kg (SL-3015), 2500 kg (SL-4020).
• Feeding device: vacuum suction cups with independent solenoid-valve control and safety sensors.
• Gantry construction: welded profiles with vibration aging and precision machining for stability.
• Raw material truck: 4 t automatic mobile truck for material transport; optional sorting-truck function for centralized or single-sheet sorting.
