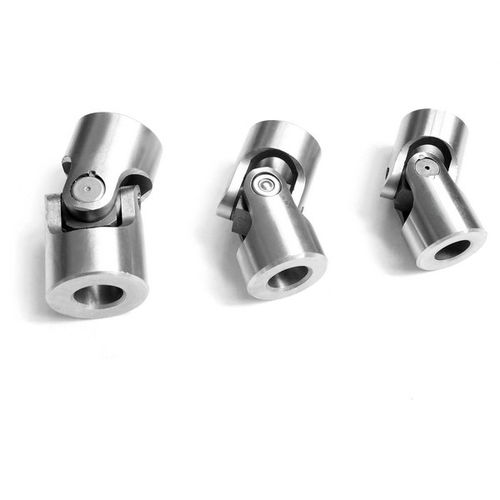

Single universal joint NB-S1metalwith needle bearing
Add to favorites
Compare this product
Characteristics
- Configuration
- single
- Material
- metal
- Other characteristics
- with needle bearing
- Diameter
Min.: 12 mm
(0.47 in)Max.: 25 mm
(0.98 in)- Operating angle
90 °
- Speed
2,000 rpm
(12,566.4 rad.min-1)
Description
transmission, between two intentionally misaligned shafts, rather than just as a coupling . Typical applications: Can be used as a linkage, or transmission, between two intentionally misaligned shafts, rather than just as a coupling .
Multiple spline keys shaft coupling with block & pin &bushing &dust cover MT type with dust boot Extensible cardan shaft Integral key shaft coupling
1.Application to all kinds of general mechanical situation, maxmum rotates speed may reach 2000r/min
2.Connects a bigger distance between shaft
3.Each point of the largest rotation angle can be 45o
4. The hole of the finshed product hole tolerance of is H7 .Standard spline is hexagonal .
5 Fast locking is available
It widely used in multiaxle drilling machine ,construction machine,packaging machine,automobile.parking facility and paper machine ,medical machine,farm machine
Specifications
Max.speed can reach 1000PRM
Static breaking torque can reach 2000N.M
Special Universal joint,PBstyles
Multiple spline keys shaft coupling with block & pin &bushing &dust cover MT type with dust boot Extensible cardan shaft Integral key shaft coupling
1.Application to all kinds of general mechanical situation, maxmum rotates speed may reach 2000r/min
2.Connects a bigger distance between shaft
3.Each point of the largest rotation angle can be 45o
4. The hole of the finshed product hole tolerance of is H7 .Standard spline is hexagonal .
5 Fast locking is available
It widely used in multiaxle drilling machine ,construction machine,packaging machine,automobile.parking facility and paper machine ,medical machine,farm machine
Specifications
Max.speed can reach 1000PRM
Static breaking torque can reach 2000N.M
Special Universal joint,PBstyles
VIDEO
Catalogs
No catalogs are available for this product.
See all of Hangzhou DJ Machinery Co., Ltd.‘s catalogsOther Hangzhou DJ Machinery Co., Ltd. products
the higher torque capacity of friction-bearing (pin & block) joints with the needle-bearing’s ability to continuously operate at higher speeds with less wear, and lower backlash
