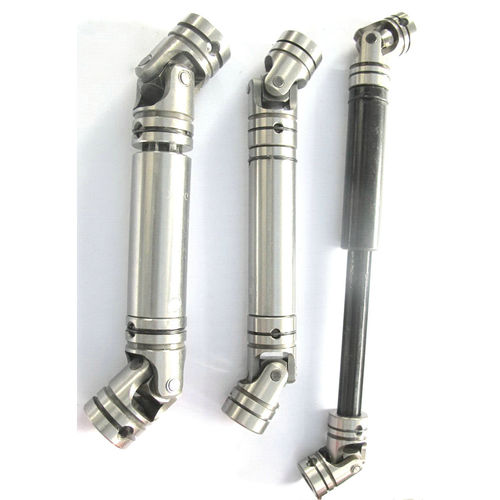

Double universal joint PR-HM23-12D-195+40hard metaltelescopicsteering
Add to favorites
Compare this product
Characteristics
- Configuration
- double
- Material
- hard metal
- Other characteristics
- telescopic, steering
- Diameter
Min.: 20 mm
(0.79 in)Max.: 50 mm
(1.97 in)- Torque
Min.: 8 Nm
(5.900497 ft.lb)Max.: 3,000 Nm
(2,212.686448 ft.lb)- Operating angle
35 °
- Speed
Min.: 10 rpm
(62.8 rad.min-1)Max.: 1,500 rpm
(9,424.8 rad.min-1)1,000 rpm
(6,283.2 rad.min-1)
Description
Coupling Universal joint Universal joint cross Auto universal joint (withdut boot)
1.Application to all kinds of general mechanical situation, maxmum rotates
2. Provides th efast locking arrangment that only has finshed product hole with the tolerance of H7 .Standard spline or hexagonal hole is available.
It widely used in multiaxle drilling machine ,construction machine,packaging machine,automobile.parking facility and paper machine
Specifications
Material is 20CrMo,HRC54-58
Max speed of rotation may reach 2000r/min
Max working angle is 35
Typical applications:
Can be used as a linkage, or transmission, between two intentionally misaligned shafts, rather than just as a Coupling .Lawn and garden equipment, conveyors and material handling equipment, food processing equipment,packaging systerm, printing equipment and so on.
Advantages of DJJX’s Universal Joints, over those of other manufacturers:
• Available in various materials
• All subcomponents very precisely machined from bar: No cheap castings or powdered metal parts, resulting in better overall and more consistent performance
• Several subtle design innovations that optimize performance and reduce cost
• Could manufacture products according to your provided drawing or samples
1.Application to all kinds of general mechanical situation, maxmum rotates
2. Provides th efast locking arrangment that only has finshed product hole with the tolerance of H7 .Standard spline or hexagonal hole is available.
It widely used in multiaxle drilling machine ,construction machine,packaging machine,automobile.parking facility and paper machine
Specifications
Material is 20CrMo,HRC54-58
Max speed of rotation may reach 2000r/min
Max working angle is 35
Typical applications:
Can be used as a linkage, or transmission, between two intentionally misaligned shafts, rather than just as a Coupling .Lawn and garden equipment, conveyors and material handling equipment, food processing equipment,packaging systerm, printing equipment and so on.
Advantages of DJJX’s Universal Joints, over those of other manufacturers:
• Available in various materials
• All subcomponents very precisely machined from bar: No cheap castings or powdered metal parts, resulting in better overall and more consistent performance
• Several subtle design innovations that optimize performance and reduce cost
• Could manufacture products according to your provided drawing or samples
