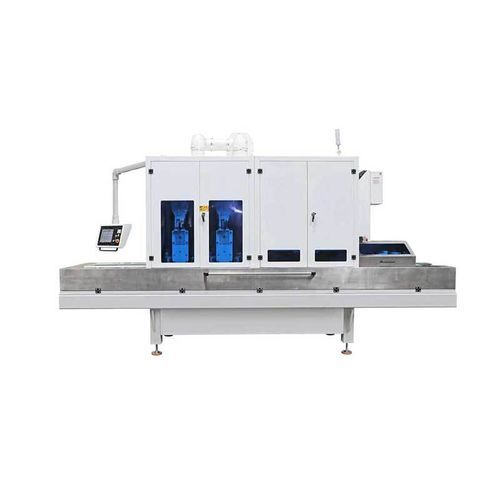

Brush deburring machine SD300-2WJS+2D

beltdiscabrasive belt

Product Description
SD300-2WJS+2D is designed for deburring, edge rounding and surface smoothing of fine blanking, punching and flat precision machined parts. The machine is optimized for high-volume parts delivered directly from presses and provides continuous conveyor feed-through processing with wet operation to control heat and extend consumable life.

Highlights

• Wet operation using water-soluble cutting fluid
• 4 work stations: 2 wide abrasive belt heads and 2 planetary disk brush stations; each station has individual motorized lifting
• Standard magnetic conveyor table to reduce minimum part size required and enable processing of most ferrous parts
• Conveyor feed-through design for high throughput
• Programmable automatic abrasive compensation over time
• Automatic cutting fluid filtration unit

Optional configuration

• Automatic flipping and looping conveyor
• Optional de-magnetizing unit at machine exit
• Planetary disk brush stations only (alternative configuration)

Technical Datasheet
Maximum working width: 300 mm
Disk brush dimension: φ165 mm
Working thickness range: 1-200 mm
Conveyor table height (fixed): 940 mm
Conveyor feeding rate: 0.5-5 m/min
Wide abrasive belt dimension: 1900 x 300 mm
Planetary disk brush rotational speed: 0-1480 r/min (variable speed by VFD)
Planetary rotational speed: 10-50 r/min (variable speed by VFD)
Total power: 23 kW
Machine weight: 4500 kg
Machine dimension: 4950 x 1450 x 2150 mm

Technical specifications

• Model: SD300-2WJS+2D
• Maximum working width: 300 mm
• Working thickness range: 1 - 200 mm
• Disk brush dimension: φ165 mm
• Conveyor table height (fixed): 940 mm
• Conveyor feeding rate: 0.5 - 5 m/min (variable by VFD)
• Wide abrasive belt dimension: 1900 x 300 mm
• Planetary disk brush rotational speed: 0 - 1480 r/min (variable by VFD)
• Planetary rotational speed: 10 - 50 r/min (variable by VFD)
• Total power: 23 kW
• Machine weight: 4500 kg
• Machine dimension: 4950 x 1450 x 2150 mm
• 4 work stations (2 wide abrasive belts + 2 planetary disk brushes) with individual motorized lifting
• Wet operation with water-soluble cutting fluid and automatic cutting fluid filtration unit
• Standard magnetic conveyor table (for ferrous parts)
• Programmable automatic abrasive compensation capability
