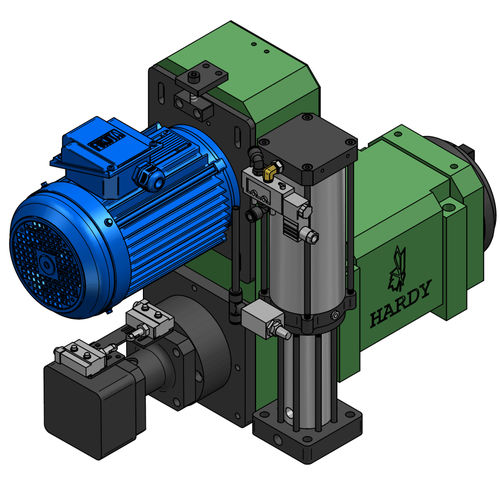

Spindle unit with automatic tool changer SCS80H-BT50

millingboringAC motor

SCS80 machining unit is designed for auto tool changing with a pneumatic clamping and unclamping cylinder and assembled with SKF or NSK bearings, the accuracy is guaranteed under 0.003mm. Its maximum capacity RPM 3000 is suitable to mount on a CNC servo slide for your machining applications. ． Standard 3-phase AC motor 2.2kW is included, optional maximum power up to 3.7kW ． Belt driven at fixed speed and incorporate a timing or Poly-V belt ． Spindle taper BT50 is available ． Available for servo driven at variable speeds ． AC Induction Motor protection IP 54 ． Gear motor is available upon request ． Center through coolant is optional.
