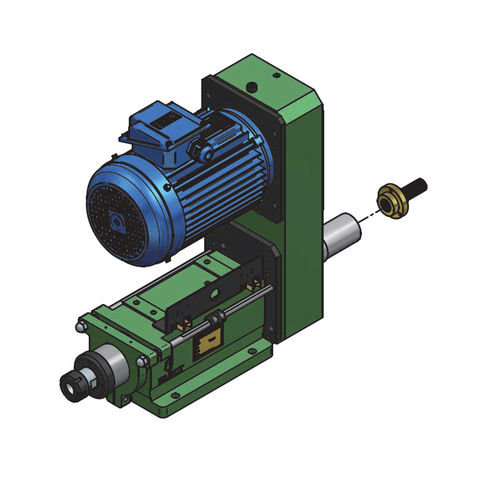

ST2N tapping spindle unit is designed with lead screw transmission and supported automatic thread cutting and float tap chuck. The maximum tapping capacity is M30 (S45C).
． Standard 3-phase AC motor 1.5kW is included, optional maximum power up to 2.2kW
． Belt driven at fixed speed and incorporate a timing or V belt
． Spindle taper ER32, NT30, MT3, FB20 and AS32 are available
． Available for servo driven at variable speeds
． OMRON proximity switch sensors and stand are furnished
． AC Induction Motor protection IP 54
． Gear motor is available upon request
Mechanical lead screw nut for pitch control.
