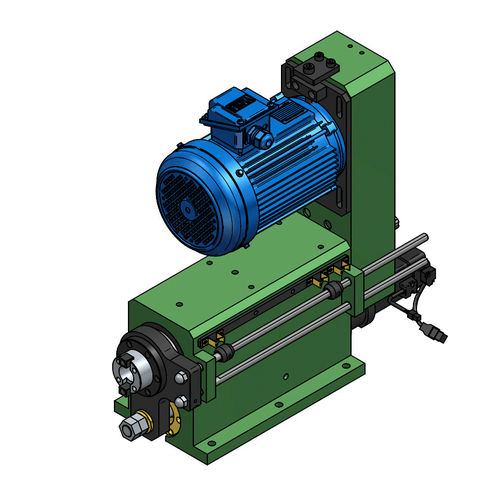

Tapping spindle SSD12H-NT40
feedingservo self-feed

tapping spindle
tapping spindle
Add to favorites
Compare this product


Characteristics

Function
tapping, feeding
Other characteristics
servo self-feed
Rotational speed

Max.: 6,000 rpm (37,699.11 rad.min-1)

Min.: 600 rpm (3,769.91 rad.min-1)

Diameter

Max.: 35 mm (1.4 in)

Min.: 1 mm (0 in)

Description

SSD12 spindle unit is designed servo feeding with ball screw grade C5 and servo motor, the accuracy of spindle nose is strictly under 0.003mm and maximum drilling capacity up to 35mm (S45C). CNC Spindle allows to perform all types of machining applications such as drilling, tapping, chamfering, reaming and countersinking. . Standard 3-phase AC motor 2.2kW is included, optional maximum power up to 3.7kW . Belt driven at fixed speed and incorporate a timing or Poly-V belt . Feed rate is programmable and driven by preferable servo motor . Feeding is driven by HIWIN or PMI Grade C5 ball screw . Spindle taper NT40 and HSK63 are available . Available for servo driven at variable speeds . OMRON proximity switch sensors and stand are furnished . AC Induction Motor protection IP 54
