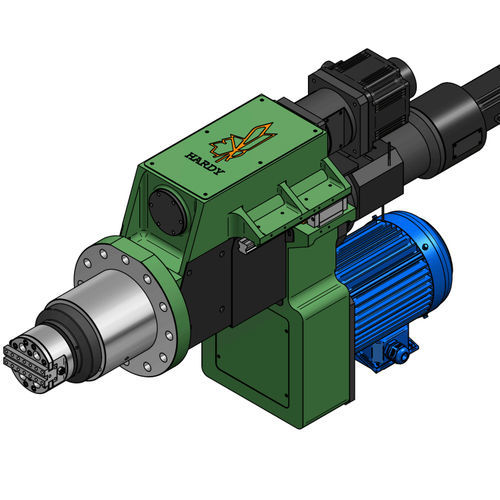

Surface treatment spindle unit SSFDL11-120MKboringservo-driven
Add to favorites
Compare this product
Characteristics
- Function
- boring, surface treatment
- Drive system
- servo-driven
- Rotational speed
1,600 rpm
(10,053.0965 rad.min-1)
Description
SSFDL11-120MK-FB45 spindle unit is designed servo feeding with ball screw grade C5 and linear rails for trunnion rotary machines. The roundness of spindle nose is within 0.002mm and repeatability of facing head slider is within 0.01mm and driven by a servo motor. This spindle unit is capable for processing like inner (ID) and outer (OD) turning, grooving, conical boring, conical threading, concave/convex rounding and other spherical machining.
．Facing slide stroke 8mm
．Facing slider repeatability within 0.005mm
．Motor Power : 3.7kW
．Maximum Stroke : 120mm
．Feeding is driven by a grade C5 ball screw
．OMRON proximity switch sensors and stand are furnished
VIDEO
Catalogs
Trunnion Spindle Unit
38 Pages
