Temperature measuring instrument HI2300-01

TDSsalinityamperometric

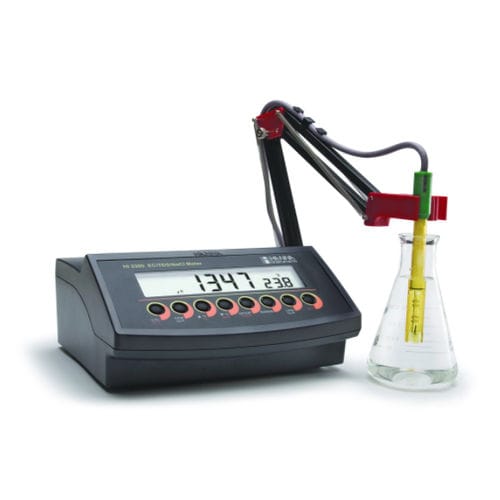

The HI2300 is an auto ranging EC/TDS/Salinity and temperature benchtop meter. The meter utilizes a four-ring potentiometric conductivity probe with platinum sensors to offer versatility over typical amperometric designs. By utilizing the four-ring probe, it is possible to measure very low or very high conductivity levels without having to change probes. The HI2300 also offers three options for temperature compensation, as well as an adjustable temperature coefficient (β) and TDS factor. GLP capabilities and PC connectivity via USB provide users with a simple way to organize and manage their data. Autoranging EC and TDS measurements Adjustable Cell Constant Automatic Temperature Compensation The HI2300 is a durable benchtop EC/TDS/Salinity and temperature meter that features a four-ring potentiometric probe, one-point calibration, and a USB port for computer connectivity. This meter is auto ranging to choose the appropriate conductivity and total dissolved solids (TDS) range, and can easily be switched to salinity mode to measure from 0.0 to 400.0% NaCl. Features at-a-glance Autoranging - In the EC and TDS measurement modes, the HI2300 automatically chooses the optimum measurement scale based on the sample solution to maintain the highest possible accuracy. Automatic Calibration - EC and TDS are automatically calibrated at one point with a choice of six pre-programmed standards. Salinity is calibrated at one point using the HI7037 100% NaCl standard solution. Four-ring EC Probe
