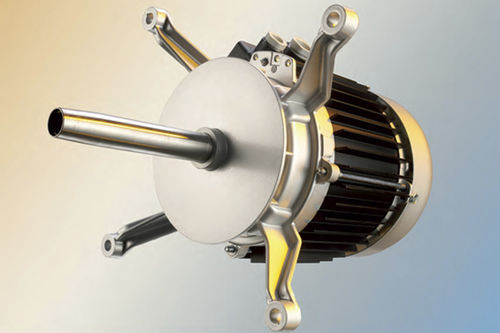

AC motor L7

asynchronous400 Vrugged

The high-quality housings also make the haventic pro fan motors especially rugged and durable. Are your application environments especially demanding? No problem. haventic pro can be adapted to withstand higher ambient temperatures and special environmental conditions. Be it waterproof or resistant to dust or chemicals: haventic pro fulfills protection ratings of up to IP54. At a glance haventic pro: Asynchronous and synchronous fan drives with housing Application fields: Livestock ventilation and central ventilation systems, soldering systems and more Advantage/benefit Rugged and temperature-resistant Technical specifications: IP54 protection rating, ambient temperature 70 °C Options: Diverse shaft ends, various fan wheels and more L7 asynchronous fan motor This fan motor withstands temperatures of up to 350 °C, occurring at the end of the shaft That is possible thanks to the mounting brackets, intermediate fans and special ball bearings with high-temperature grease, which ensures a long service life. The drive is equipped with hollow shafts made of diverse shaft materials and hard coatings for seal seats. It achieves speeds of up to 3,600 min1 and operates using standard frequencies of 50/60 Hz, unless it is controlled by a frequency inverter.
