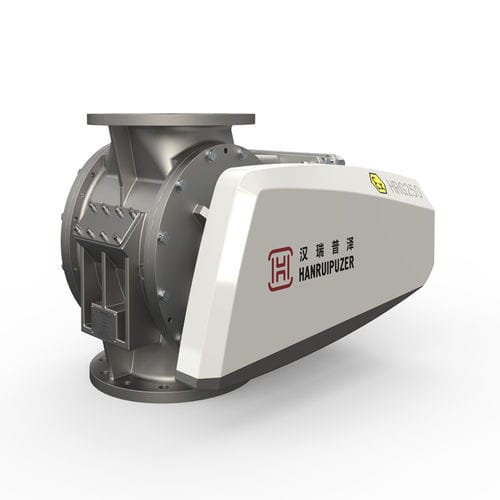

Rotary valve for heavy-duty applications

for pneumatic conveyingfor foodfor grain

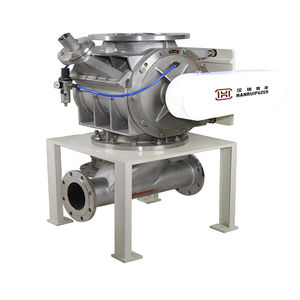

Heavy duty rotary valves are designed for general use on pneumatic conveying systems for both metering and airlock duties, suitable for both vacuum and pressure application on a wide variety of powders and granules, with feeding shoe also suitable for feeding material into pneumatic conveying systems, operation possible without leakage gas venting. • Compact design minimising headroom • Robust body adequately stiffened to prevent distortion • Heavy shaft diameters minimising deflection • Outboard bearings for noncontamination – options for high temperature • Rotary Valve (Heavy Duty Type) Technical • Working pressure : Low pressure >0.01Mpa : Medium pressure 0.01~0.02Mpa : High pressure 0.02~0.03Mpa • Tested pressure : 0.015Mpa : 0.03Mpa : 0.045Mpa • Working temperature : -20℃ ∽200℃ • Main size : DN100∽DN300 (4”∽12”) • Conveying capacity : 1∽18m3/h • Voltage : 110v/220v/380v/415v/etc • Flange standard : ANSI, B16.5,150LB,GB,HG,SH,etc
