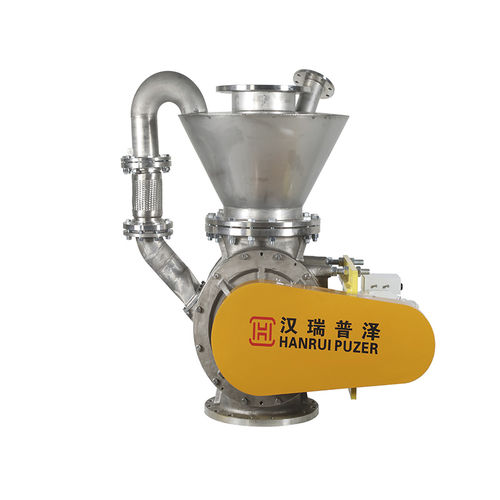

Pneumatic conveying rotary valve

for bulk materialshygienic

This rotary valve is designed for easy removal of the rotor while the shaft seal is retained on the Rotary Valve Housing.. • Fully machined externals for clean form and function • Compact assembly accommodates installation space constraints • Easy to clean both internally and externally with easily removable rotor • Hygienic all stainless steel design with minimal cracks and crevices • Smooth internal surfaces reduces product pick-up and aids pocket emptying efficiency • Direct drive with enclosed coupling eliminates problems with cleaning and maintaining a chain and sprocket drive • Minimum clearance between rotor tips and body • Lip seals provide effective containment with reduced maintenance requirements • Precision machining of components Rotary Valve(Fast Cleaning Type) Technical • Working pressure : Low pressure >0.01Mpa : Medium pressure 0.01~0.02Mpa : High pressure 0.02~0.03Mpa • Tested pressure : 0.015Mpa : 0.03Mpa : 0.045Mpa • Working temperature : -20℃ ∽200℃ • Main size : DN100∽DN300 (4”∽12”) • Conveying capacity : 1∽18m3/h • Voltage : 110v/220v/380v/415v/etc • Flange standard : ANSI, B16.5,150LB,GB,HG,SH,etc
