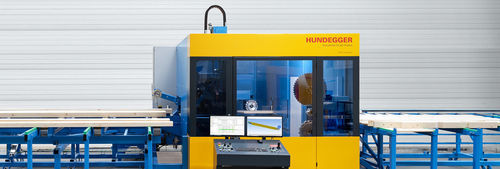

Multifunction cutting and machining center ROBOT-Compact 650

CNCwooden

Overview
The ROBOT-Compact 650 is a compact joinery machine based on a patented 6-axis robot unit with automatic tool changer. Designed for professional timber processing where floor space is limited, it performs multiple machining operations in one pass without part rotation.

Key product description
The machine integrates a 6-axis ROBOT spindle and an automatic tool magazine to execute trimming, grooving, drilling, milling, slotting and marking on up to six sides in a single cycle. Its compact footprint suits workshops and small production lines while supporting a wide range of timber cross-sections.

Highlights

• Patented 6-axis robot unit for six-side processing in one pass
• Tool magazine capacity up to 28 tools (usable length up to 420 mm)
• Spindle speed stepless from 0 to 12,000 rpm
• Processes cross-sections from 20 x 60 mm to 300 x 650 mm (including glulam/CLT ranges)
• Short-part flap with conveyor for operator-side removal

How you benefit

• Compact footprint for limited-space production sites
• High flexibility for custom or small-batch projects
• Ability to execute multiple conventional operations in a single pass
• Use of up to 28 different tools for diverse machining strategies

Automation & layout options
The ROBOT-Compact 650 is modular: optional automatic infeed buffer for piece singulation, hydraulic lift table with automatic stacking, transport conveyors, and outfeed systems including storage racks or driven conveyors. Layouts can be adapted to production flow and timber lengths.

Tool magazine and tooling
The tool changer magazine accepts up to 28 tools with a usable length up to 420 mm. Combined with the 6-axis spindle, the magazine enables a wide spectrum of machining strategies and tool combinations.

Software
CAMBIUM is the 3D production software for job preparation and machine control. It provides a unified interface for Hundegger machines, automatic optimization, customizable workflows and standard IT interfaces for integration with infeed and storage systems.

Processing examples
Typical applications include trimming, grooving, drilling, milling, slotting, profiling, multi-spindle drilling and chamfering. With suitable tooling and spindle strategies the machine achieves consistent visual-quality surfaces.

Technical specifications

• Model: ROBOT-Compact 650
• Processing cross-sections: 20 x 60 mm to 300 x 650 mm
• Robot unit: patented 6-axis ROBOT spindle
• Spindle speed range: 0 – 12,000 rpm (stepless)
• Tool magazine capacity: up to 28 tool slots
• Maximum usable tool length in magazine: up to 420 mm
• Processing capability: conventional operations in a single pass (no part rotation required)
• Short part handling: short part flap with conveyor to operator side
• Automation options: automatic infeed buffer, lift table with automatic stacking (optional), placement conveyors, outfeed storage rack or driven conveyor
• Software: CAMBIUM 3D for job preparation, optimization and machine interfacing
