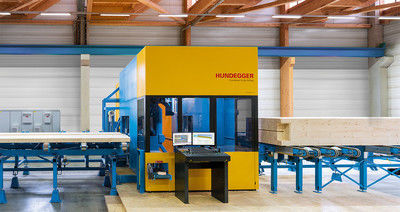

6-axis machining center ROBOT-Max

verticalfor woodrobotized

Product overview
The performance, versatility and flexibility of the ROBOT-Max combined with Hundegger CAMBIUM software set a new standard in mass-timber production. ROBOT-Max extends Hundegger's 6-axis processing range with single-pass machining of parts up to 610 x 1,300 mm and modular options to meet higher capacity demands.

The ROBOT-Max

• ROBOT-Max 1300 variant: processes part cross-sections from 20 x 60 mm up to 610 x 1,300 mm.
• Single-pass machining of all six sides without part rotation.
• Highly modular and customizable concept to adapt to new production requirements after purchase.

Key features & benefits

• Maximize throughput and flexibility with high cross-section capacity.
• Process all 6 sides in one pass with up to 32 freely selectable tools.
• Standard ROBOT spindle: 29 kW, liquid-cooled, infinitely variable speed (0–15,000 rpm).
• Overhead 5-axis saw/slot/marking unit with 13 kW drive rating works in tandem to increase throughput.
• Supported operations: trimming, grooving, drilling, milling, slotting, marking, end milling, notching and profiling.
• Combination of ROBOT unit and overhead saw/slot/marking unit for enhanced productivity.

How you benefit

• Individual machine configuration to match application needs.
• Includes a 5-axis saw/slotting/marking unit to raise throughput.
• Processing cross-sections from 20 x 60 mm up to 610 x 1,300 mm.
• 6-axis technology enabling 6-sided processing in a single pass.
• Use up to 32 different tools for broad processing capability.

Processing examples
The ROBOT-Max and ROBOT-Drive perform joinery operations with high precision on large cross-sections in a single run. Typical examples include dovetails, slots, end-face drilling, large and small part processing and various groove/kerf operations.

Technology & modular design
The modular design allows individual adaptation: the ROBOT unit paired with the 5-axis saw/slot/marking device. Options include additional drilling units, slot cutters, labelling systems and printers. Different installation variants are available to suit space and workflow requirements.

Automation

• Fully automatic infeed system, independent of cross-section; automatic alignment of larger timber on the O-line.
• Hydraulic lift table upstream of the infeed cross conveyor for continuous feeding from stacked timber.
• Flexible outfeed options (rollers, chain-driven cross conveyor) and integrated chip/waste disposal channel; machine can be mounted on concrete floor or installed over a pit to reduce handling height.

Software
Hundegger CAMBIUM® 3D software: a single platform for Hundegger machines, enabling simple data input for timber construction, automated calculations and optimization, clear reports, standard IT interfaces and connection to infeed and storage systems.

Technical specifications

• Model / series: ROBOT-Max (variant: ROBOT-Max 1300).
• Processing cross-section range: from 20 x 60 mm up to 610 x 1,300 mm.
• Robot axis technology: 6-axis robot unit — processing on 6 sides in a single pass.
• Tool magazine capacity: up to 32 freely selectable tools.
• Main ROBOT spindle: 29 kW, liquid-cooled, variable speed 0–15,000 rpm.
• Overhead 5-axis saw/slot/marking unit: 13 kW drive rating; saw blade example: 520 mm.
• Typical operations: trimming, grooving, drilling, milling, slotting, marking, end milling, notching, profiling.
• Automation components: fully automatic feeding, automatic alignment, hydraulic lift table, various outfeed options, integrated chip disposal conveyor; floor or pit installation possible.
• Software: Hundegger CAMBIUM® (3D CAM software for job preparation, nesting, optimization and machine interface).
