Leather thickness gauge HSTG

foilfilmtextile

Overview

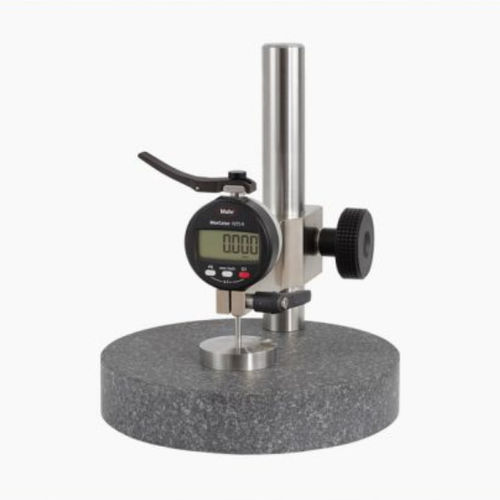

Digital desktop thickness gauge with 70 mm depth of jaw, 12 mm measuring range (expandable) and a resolution of 0.001 or 0.0001 mm. Desktop device with digital display suitable for measurements according to DIN, EN, ISO and ASTM standards.

Included models / examples

• Thickness Gauge HSTGA
  • Measuring depth: approx. 85 mm
  • Measuring range: 0 - 12 mm (expandable)
  • Resolution: 0.001 mm
  • Display: LCD
  • Applications: Rubber, textiles, tapes, braids, sheets for waterproofing, tissue, woven fabrics, blankets, napped fabrics, flexible packaging material, textured and knitted fabrics
• Thickness Gauge HSTGB
  • Measuring depth: approx. 85 mm
  • Measuring range: 0 - 12 mm (expandable)
  • Resolution: 0.0001 mm
  • Display: LCD
  • Applications: films and foils
• Thickness Gauge HSTGC
  • Measuring depth: approx. 85 mm
  • Measuring range: 0 - 12 mm (expandable)
  • Resolution: 0.001 mm
  • Display: LCD
  • Applications: Leather, films, glass cloths, glass tapes, geosynthetics, paper, cardboard, flexible packaging material

Additional information
These digital desktop thickness gauges are designed to meet standards for thickness measurement of textiles, paper, leather and other materials. Typical device features include a defined jaw depth for repeatable measurement, high resolution options (down to 0.0001 mm), LCD display and expandability of measuring range for specific applications.

Caractéristiques / spécifications techniques

• Depth of jaw (category reference): 70 mm
• Category measuring range: 12 mm (expandable)
• Resolutions available: 0.001 mm or 0.0001 mm (depending on model)
• Device type: digital desktop thickness gauge
• Display: LCD
• Intended materials / applications: textiles, paper, leather, films/foils, rubber, geosynthetics, flexible packaging materials, glass cloths and tapes
• Typical measuring depth (listed models): approx. 85 mm
