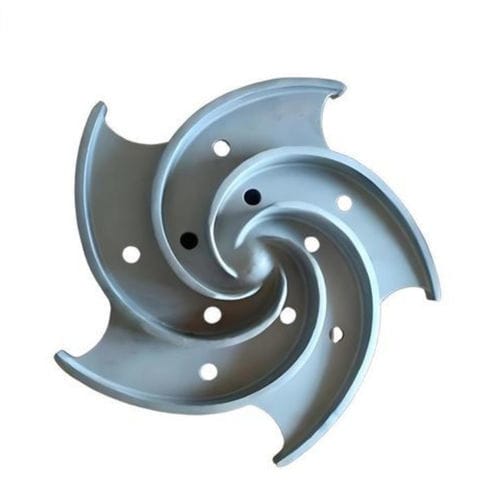

Pump impeller

Product Overview
Hansheng Automation's centrifugal pump impellers are the core power component of pump systems, manufactured with micron-level precision and ISO G2.5 dynamic balancing. These impellers are designed to enhance fluid system performance and reduce energy consumption across multiple industries. A well-designed and precisely manufactured impeller efficiently converts mechanical energy into fluid pressure and kinetic energy, ensuring stable operation even under harsh conditions.

Leveraging expertise in arcsecond-level precision transmission, Hansheng Automation combines advanced fluid dynamics with micron-level manufacturing to deliver high-performance, customized centrifugal pump impellers. These are not just spare parts but engineering solutions that significantly improve the overall performance of fluid delivery systems.

Product Features and Advantages

• High Surface Finish: Ultra-mirror-finish machining (accuracy up to ±0.002mm, surface roughness Ra 0.2) results in impeller flow channels with extremely low friction, improving pump efficiency and reducing power consumption.
• Perfect Reproduction of Hydraulic Models: Five-axis CNC machining centers can perfectly replicate complex blade curves and spatial surfaces from design drawings.
• Strict Dynamic Balancing Control: Each impeller undergoes rigorous dynamic balancing testing, achieving ISO G2.5 balance level, which enhances operational stability and extends the service life of mechanical seals and bearings.
• Rigorous Quality Control: Use of coordinate measuring machines and gear inspection instruments ensures every impeller meets or exceeds design standards.

One-stop Full-process Manufacturing
Hansheng Automation integrates a complete manufacturing chain from source to end, saving customers time, effort, and costs.

• Precision Casting: Multiple processes (sand casting, lost foam casting, gravity casting) are available, with optimal forming solutions based on structural complexity, dimensions, and material. Dimensional accuracy of blanks is guaranteed (critical tolerance ±0.03mm) along with internal metallurgical integrity.
• CNC Precision Machining: CNC machining centers perform precision machining on cast blanks, including inner and outer diameters, hub bores, and blade flow channels.
• Optimization Suggestions: Hansheng Automation provides optimization suggestions for design models based on engineering experience.

Technical Specifications at a Glance
Parameter
Standard
Our Capability
Machining Tolerance
±0.05mm
up to ±0.002mm
Surface Roughness
Ra 3.2
up to Ra 0.2
Dynamic Balance Grade
ISO G6.3
up to ISO G2.5
Max. Diameter
-
Up to 3800mm (determined by casting)
Min. Diameter
-
3mm
Producible Impeller Types
Blade Forms
Closed Impeller, Semi-Open Impeller, Open Impeller
Materials
Cast Iron, Stainless Steel
Cast Iron, Ductile Iron, Stainless Steel (304/316L), Duplex Steel, Bronze, Titanium Alloy, etc.
Inspection Equipment
Calipers
Coordinate Measuring Machine (CMM), Laser Scanner, Dynamic balancing tester

Our Manufacturing Process

• Engineering Consulting
• Molding & Casting
• CNC Machining
• Balancing & Inspection
• Delivery & Support

Industries Served

• Oil & Gas
• Water Treatment & Municipal
• Mining & Metallurgy
• Pulp & Paper
• Food & Beverage

FAQ

• Lead Time: Depends on impeller complexity, size, and material. Typically 4-6 weeks for standard products.
• Small Batch Orders: Accepted, from single prototypes to mass production.
• Material Compliance: Pre-furnace spectral analysis reports and third-party material testing certificates are available to ensure 100% compliance with standards.

Key Characteristics / Technical Specifications

• Micron-level precision (up to ±0.002mm)
• Surface roughness up to Ra 0.2
• ISO G2.5 dynamic balance
• Max diameter: up to 3800mm; Min diameter: 3mm
• Closed, semi-open, and open impeller types
• Materials: Cast iron, ductile iron, stainless steel (304/316L), duplex steel, bronze, titanium alloy, etc.
• Industries: Oil & gas, water treatment, mining, pulp & paper, food & beverage
• Quality control: CMM, laser scanner, dynamic balancing tester
