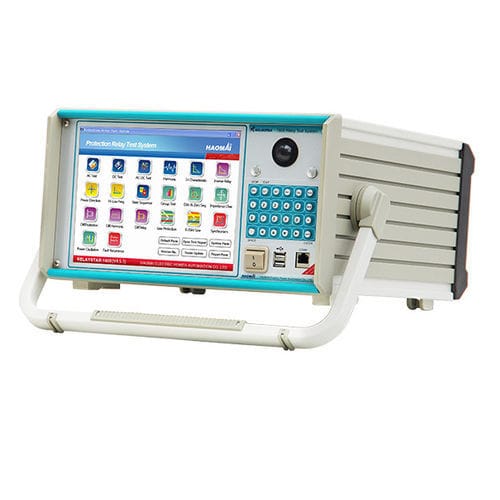

Current testing device RELAYSTAR-1600

voltageautomaticprotection relay

The RELAYSTAR-1600 is multipurpose 6-phase protection relay test system for testing all generations and types of protection relays according to requirements of ANSI / IEEE, which can output 6-phase current(6x0…40A) and 6-phase voltage (6x0…150V).The powerful test software with RIO library makes the tests much easier. The RELAYSTAR-1600 is multipurpose 6-phase protection relay test system for testing all generations and types of protection relays, which can output 6-phase current(6x0…40A) and 6-phase voltage (6x0…150V). The RELAYSTAR-1600 is an excellent choice when you want larger current and higher power output(6x0…40A, 6x300VA; 1x0…240A, 1x1000VA) for testing high-burden electromechanical relays. The RELAYSTAR-1600 can be operated without a PC. It combines embedded industrial PC, 10.4” full color TFT LCD screen, built-in mouse and keyboard for easier local operation. High Power 6-phase protection relay test system RELAYSTAR-1600 can be synchronized to perform end-to-end testing with the test sets allocated in different substations through its in-built GPS. The main features of High Power 6-phase Protection Relay Test System RELAYSTAR-1600 are as follows: ●6-phase current(6×40A) + 6-phase voltage(6×150V) output ●Embedded industrial PC with 10.4” LCD screen ●Operates with or without a PC ●High performance amplifiers ●Higher power output: 1x1000VA@240A ●End to end test via in-built GPS ●Powerful software for local test and remote PC test
