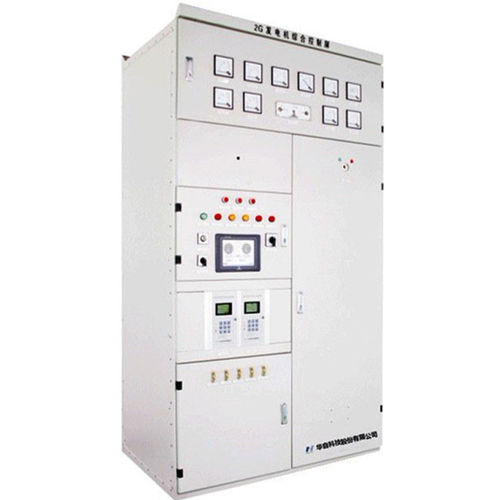

Turbine generator control system PDJ

measurementmonitoringprotection

It is applicable to the computer monitoring, automatic control, protection, measurement,signaling, telecontrol and other automation functions for 400V Low Voltage turbine generator. Main technical parameters It is suitable for the unit with generator rated voltage of 400V and installed capacity ranges from 100kW to 800kW; The RS485 or Ethernet interface is provided to communication with upper computer and remotedispatching center; Acquisition of 16-loop DIs; 128sequence of event (SOE) record; 60 cycles fault record before andafter failure; The sync-check, no-voltage check synchronization function Sync. phase difference: 1.0°~20.0°; Sync. voltage difference: 1.0V~20.0V; sync. frequency difference: 0.02Hz~0.50Hz; No-voltage setting 5.0V~50.0V; Valid time for closing operation: 0.1s~20.0s; The excitation function configurable Excitation voltage: 0~100V; Excitation current: 0~10A; Maximumexcitation current: 20A It is suitable for ACexciter and low voltage brushless excitation system. Overall dimension: GGD cabinet 1200×800×2260 (W*D*H) Operating environment: -10℃~+55℃, relative humidity ≤ 90％, elevation below 3000m.
