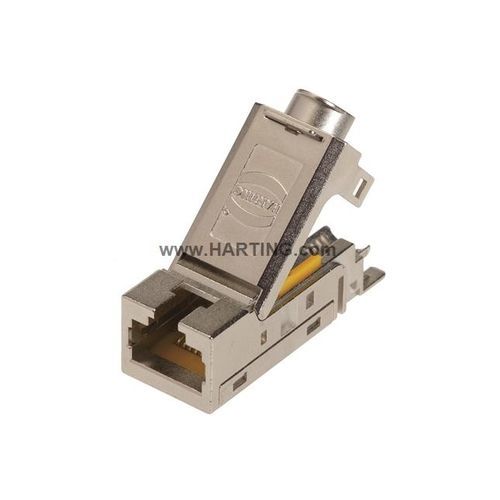

Optical data cable preLink®

EthernetRJ45for telecommunication networks

Element Female module Specification Without termination block Termination method preLink® IDC insulation displacement termination Size HIFF version Transmission characteristics Cat. 6A Class EA up to 500 MHz Data rate ‌ 10 Mbit/s ‌ 100 Mbit/s ‌ 1 Gbit/s ‌ 2.5 Gbit/s ‌ 5 Gbit/s ‌ 10 Gbit/s Limiting temperature -40 ... +85 °C Degree of protection acc. to IEC 60529 IP20 Vibration resistance 5.72 m/s² acc. to IEC 61373 Category 1 Class B Shock resistance 5 g / 30 ms, 5 shocks / axis and direction acc. to IEC 61373 Category 1 Class B RoHS compliant ELV status compliant China RoHS e REACH Annex XVII substances Not contained REACH ANNEX XIV substances Not contained REACH SVHC substances Not contained Specifications EN 45545-2 UL / CSA UL 1863 DUXR2.E470046 CSA-C22.2 No. 182.4, No. 233-09 DUXR8.E470046 Approvals DNV GL PROFINET Yes
