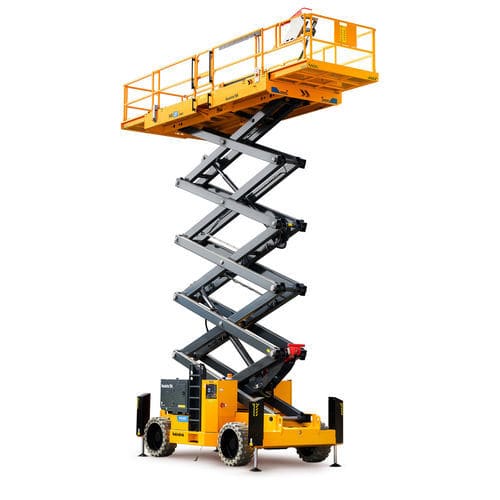

Wheeled scissor lift HS21 E

self-propelledelectricall-terrain

In response to decarbonization challenges and the evolution of high-rise construction sites, Haulotte expands its PULSEO range with the HS21 E and HS21 E PRO, two 100% electric rough terrain scissor lifts that combine power, precision, and durability reaching up to 21 meters. - 100% electric drive & rough terrain capabilities - High performance - Easy maintenance & durability Product characteristics - Indoor / Outdoor - Rough terrain - Electric Application fields - Finishings - Logistic / Retail / Industry - Building works - Maintenance & Restoration - Sporting & other events Specifications Working height: 21.2 m Overall width: 2.43 m Platform height: 19.2 m Lift capacity: 750 kg Lift capacity on the extension: 225 kg Platform length: 4.96 m Platform length - extended: 7.51 m Length - extension: 1.28 m Platform width - outside: 2.08 m Height - stowed: 3.52 m Height - guardrails lowered: 2.72 m Length: 4.96 m Wheelbase: 3 m Ground clearance: 31 cm Micro drivespeed: 0.8 km/h Drive speed: 4.5 km/h Gradeability: 38 % Tilt (longitudinal / lateral): 3.5° / 1.5° Lift / lower speed: 100 s Turning radius - outside: 7.45 m Tyres: 910 X 355 mm Hydraulic system capacity: 82 l Weight: 10620 kg Batteries (nominal capacity): Li-ion: 280 A.h Standard equipment - 4 wheel drive - 72V Lithium-ion batteries pack with 5-year warranty - 4 wheel-steer with self-aligning rear-wheels (PRO model only) - AC motors - Two drop bar entries - Access to the MyHaulotte multi-service portal - Telematic solution - Haulotte Activ'Energy Management: smart battery management system - Haulotte Activ'Screen - Haulotte Activ'Lighting System (standard PRO model) - Dual extensions - Outriggers with automatic or individual set up - Folding guardrails - Manual and automatic differential lock - Upper control box with integrated screen Main options - Range extender (5.2 kW) - Squawker - Leak containment system - Platform plinth access handles - Material handling rack - SHERPAL telematics solution - Cold & arctic weather kits - Non marking tires - AC power to platform plug (110 / 230 V) - Double swing gate entry - Fast charger (380 V) - Central tube holder - Platform lighting - Haulotte Activ'Shield Bar - Air line to platform Key Features - Silent & clean operation: ideal for both indoor and outdoor use - Manual and automatic differential lock: optimum grip on difficult terrain - 4-wheel steering (PRO model only): improved maneuverability on all types of terrain - Upper control box with integrated screen: real-time information - Removable Range Extender (optional): extends autonomy with low power consumption - Platform capacity of 750 kg - Full-height drive capability with no load restrictions - 7.5m large deck with 2 extensions for extended workspace and outreach - Self-aligning rear-wheels (PRO model only): improved safety for loading procedures - Lithium-ion batteries with 5-year warranty: extended autonomy, long-lasting performance and zero maintenance - Activ'Screen: on-board configuration & diagnostic interface - Easy access to components for fast and efficient maintenance
