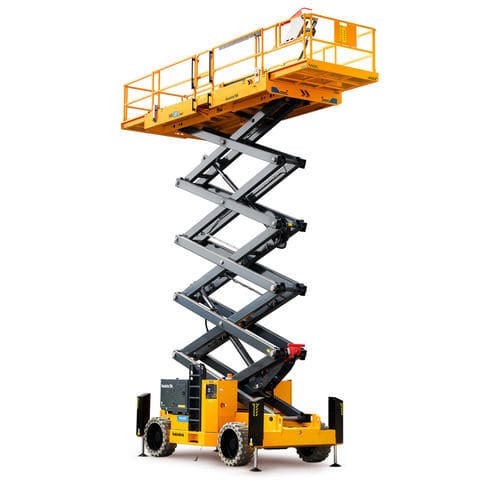

Self-propelled scissor lift HS21 E PRO

wheeledelectricall-terrain

Product Overview In response to decarbonization challenges and the evolution of high-altitude worksites, Haulotte expands its PULSEO range with the HS21 E and HS21 E PRO, two 100% electric all-terrain scissor lifts that combine power, precision, and durability, reaching up to 21 meters. Product Features - Excellent performance - Easy maintenance and durability - 100% electric drive and all-terrain capabilities Application Fields - Finishing construction - Logistics - Main construction - Maintenance & renovation - Sports or event manifestations Detailed Specifications - Total weight: 10,750 kg - Working height: 21.2 m - Platform height: 19.2 m - Maximum capacity: 750 kg - Maximum capacity on extension: 225 kg - Platform length: 4.96 m - Extended platform length: 7.51 m - Extension length: 1.28 m - Platform width: 2.08 m - Folded height - guardrails up: 3.52 m - Folded height - guardrails down: 2.72 m - Overall length: 4.96 m - Overall width: 2.43 m - Wheelbase: 3 m - Ground clearance: 31 cm - Micro drive speed: 0.8 km/h - Drive speed: 4.5 km/h - Maximum slope: 38% - Longitudinal / lateral tilt: 3.5° / 1.5° - Ascent/descent time: 100 s - External turning radius: 4.40 m - Ground clearance: 910 x 355 mm - Batteries (usable capacity): Li-ion: 280 Ah - Hydraulic oil tank capacity: 82 l Standard Equipment - Access to MyHaulotte multiservice portal - 4-wheel drive - 4-wheel steering (PRO model only) with automatic rear wheel alignment - 72 V lithium-ion battery with 5-year warranty - Upper control box with integrated screen - Manual and automatic differential lock - Two sliding rails - Folding guardrails - AC motors - Haulotte Activ'Screen - Haulotte Activ'Lighting System (standard PRO model) - Automatic or individual adjustable stabilizers - Double platform extension - Haulotte Activ'Energy Management: intelligent battery management system and manual centralized filling - Telematics solution Main Options - Range extender (5.2 kW) - Lynx cry - Leak prevention system - Platform access handles - Material holder - SHERPAL telematics solution - Cold country kit and arctic kit - Non-marking tires - Electrical outlet in the basket (110 / 230 V) - Entry with double swing gate - Accelerated charging (380 V) - Central tube support - Platform lighting - Haulotte Activ'Shield Bar - Compressed air line Key Features / Technical Specifications - Optional and removable Range Extender, extends autonomy with low fuel consumption - Platform capacity of 750 kg - Full height drive without load restrictions - 7.5 m platform with 2 extensions for extended workspace - Rear wheel alignment (PRO model only): improved safety during loading operations - Lithium-ion batteries with 5-year warranty: extended autonomy, durable performance, and no maintenance - Activ'Screen: onboard configuration and diagnostic interface - Easy access to components for quick and efficient maintenance - Silent and clean operation: ideal for indoor and outdoor use - Manual and automatic differential lock: optimal grip on difficult terrain - 4-wheel drive (PRO model only): improved maneuverability on all types of terrain - Upper control box with integrated screen: real-time information
