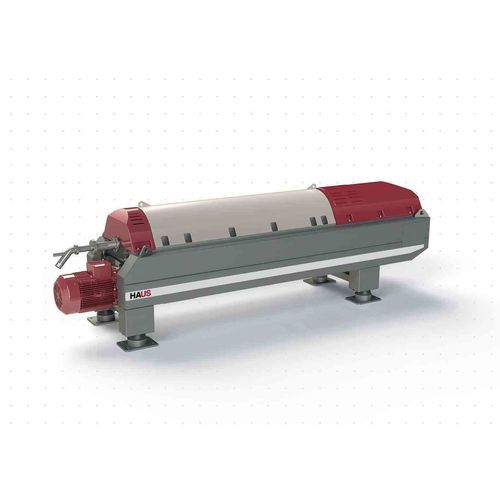

Wastewater decanter DDE series

for water treatment applicationsindustrialfor sludge dewatering

Product
Decanter centrifuge DDE Series features a 2-phase horizontal rotating bowl, continuous sludge discharge via a scrolling conveyor and a dual-drive design with variable differential speed. The machine is engineered for efficient solid-liquid separation in municipal and industrial wastewater treatment and potable water applications.

Application Areas
Suitable for municipal wastewater plants, industrial effluent treatment and potable water treatment facilities. The DDE Series separates suspended solids, increases sludge dryness and lowers disposal volume and costs.

Advanced Design & Competitive Solution
Designed for both large-scale and small/medium-capacity installations, the DDE Series offers an economical separation solution using advanced manufacturing and modular configuration options.

Continuous Processing Capability
Capable of continuous operation on low to high solids loads, the decanter extracts the majority of suspended solids and delivers significantly drier sludge for more efficient handling and disposal.

Performance Benefits

• Maximum solid extraction from wastewater streams
• Enhanced sludge dryness up to 30% solids (depending on feed and configuration)
• Reduced disposal volume and costs by minimizing water content
• Continuous, uninterrupted operation for reliable plant performance
• Energy-efficient processing via optimized motor control and VFDs

Series Overview
Series | Primary Application | Capacity Range | Configuration | Key Feature
DDE Series | Wastewater Treatment & Sludge Dewatering | ~2–80 ton/hour | 2-phase | Municipal & Industrial Plants
DDF Series | Food & Beverage Industry | 5–50 ton/hour | 2-phase or 3-phase | Hygienic Stainless Steel Design
DDI Series | Heavy Industrial Applications | 10–100 ton/hour | 2-phase or 3-phase | High Durability & Strength

Product Features

• Maximum Performance: High G-force with a bowl rotating at very high speed
• Flexible Configuration: Choice of construction materials, wear protection, motor power and gearbox torque
• Touch Panel: PLC with HMI for automatic modes, sludge dryness setpoint and alarm monitoring
• Easy Optimization: Pond depth regulation to operate positive, neutral or negative
• Product Based Performance: Variable conveyor speed to handle different solids loads with target dryness
• Dual Drive: Main motor for bowl and secondary motor for conveyor, both VFD-driven and linked by a high-torque gearbox without friction clutch

Models & Key Technical Data (excerpt)
DDE 2342 — Installed Motor Power: 9.7 kW / 15 kW — Dimensions (L×W×H): 2410×660×955 mm — Weight: 900 kg
DDE 3532 — Installed Motor Power: 19 kW / 24 kW — Dimensions (L×W×H): 3210×890×1090 mm — Weight: 1750 kg
DDE 3042 — Installed Motor Power: 19 kW / 20.5 kW — Dimensions (L×W×H): 2973×805×1035 mm — Weight: 1250 kg
DDE 3542 — Installed Motor Power: 24 kW / 37.5 kW — Dimensions (L×W×H): 3590×890×1090 mm — Weight: 1650 kg
DDE 4042 — Installed Motor Power: 41 kW / 45 kW — Dimensions (L×W×H): 3930×1000×1115 mm — Weight: 2200 kg
DDE 4742 — Installed Motor Power: 48 kW / 60 kW — Dimensions (L×W×H): 4700×1120×1370 mm — Weight: 4200 kg
DDE 5342 — Installed Motor Power: 70 kW / 90 kW — Dimensions (L×W×H): 5415×1565×1510 mm — Weight: 6200 kg
DDE 6642 — Installed Motor Power: 112 kW / 132 kW — Dimensions (L×W×H): 5890×1950×1510 mm — Weight: 10000 kg
DDE 8242 — Installed Motor Power: 169 kW / 197 kW — Dimensions (L×W×H): 6135×2465×1750 mm — Weight: 15500 kg

Technical Characteristics / Specifications

• Denomination: DDE Series Decanter Centrifuge
• Configuration: 2-phase horizontal rotating bowl
• Operational mode: Continuous discharge with scrolling conveyor
• Drive: Dual-drive design with variable differential speed and VFD control
• Capacity range (series): ~2–80 ton/hour (DDE Series)
• Typical achieved sludge dryness: up to 30% solids (depending on feed and configuration)
• Control & automation: PLC with HMI (touch panel) for automatic modes, sludge dryness adjustment and alarm monitoring
• Customization options: material of construction, wear protection, motor power, gearbox torque
• Use cases: Municipal wastewater, industrial wastewater, potable water treatment, sludge dewatering
• Available models and main installed motor power / dimensions / weights: see Models & Key Technical Data above
