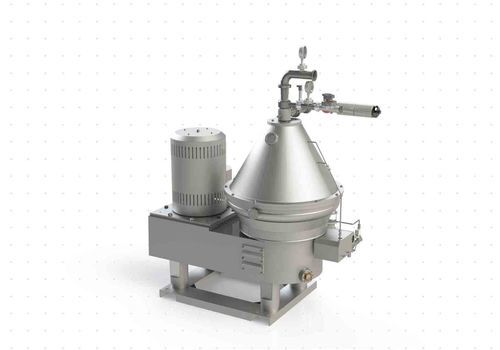

Centrifugal separator M series

for mineral oilfor marine applicationscompact

HAUS M Series Separators | Marine and Mineral Oil Applications
HAUS M Series centrifugal separators are engineered for shipboard and industrial mineral oil treatment. They deliver high separation efficiency through strong centrifugal force and are optimized for marine fuels and high‑viscosity lubricants.

IACS Approved Ship Separators
Selected HAUS ship separators of the M Series hold approval certificates from IACS member classification societies, ensuring compliance with international maritime standards and classification requirements.

Wide Application Range
HAUS M Series units are suitable for diesel fuels, heavy fuel oil (HFO), NATO fuels, SAE30/SAE40 and higher‑viscosity lubricating oils. They can be applied to fuel polishing, purifier service and industrial mineral oil treatment.

High Durability and Corrosion Resistance
Key structural parts are manufactured in duplex stainless materials for enhanced corrosion resistance in marine environments. Sealing elements are specified for high‑temperature service. An outer body with thermal insulating coating is available on request to increase protection or provide thermal insulation.

Continuous Operation and Energy Efficiency
M Series separators are designed for continuous shipboard operation with low power consumption and rapid discharge systems. Units are available as compact modules with small footprint or as individual machines, and can be supplied with or without optional accessories according to operational requirements.

Advantages of HAUS M Series Separators

• Compatibility with a wide range of fuels and oils
• Duplex stainless materials for corrosion resistance
• Seals rated for high‑temperature applications
• Wear‑resistant mechanical design
• Fast and efficient discharge system
• High separation efficiency

Application / Product Type / Feature
Marine - Fuel | Diesel, HFO, NATO Fuels | IACS approved
Lubricating Oils | SAE 30, SAE 40, High Viscosity | High temperature resistant
Mineral Oil Treatment | Industrial Mineral Oils | Duplex steel, corrosion resistant

Product Models & Technical Specifications
MBA 3222-PC35
TECHNICAL SPECIFICATIONS
INSTALLED MOTOR POWER: 5.5 kW - 11 kW (varies by product)
DIMENSIONS (L x W x H): 1150 x 690 x 1170 mm
WEIGHT: 480 kg

MBA 3223-PC35
TECHNICAL SPECIFICATIONS
INSTALLED MOTOR POWER: 5.5 kW - 11 kW (varies by product)
DIMENSIONS (L x W x H): 1150 x 690 x 1170 mm
WEIGHT: 480 kg

MBA 3222-P35
TECHNICAL SPECIFICATIONS
INSTALLED MOTOR POWER: 5.5 kW - 11 kW (varies by product)
DIMENSIONS (L x W x H): 1150 x 690 x 1170 mm
WEIGHT: 480 kg

MBA 3223-P35
TECHNICAL SPECIFICATIONS
INSTALLED MOTOR POWER: 5.5 kW - 11 kW (varies by product)
DIMENSIONS (L x W x H): 1150 x 690 x 1170 mm
WEIGHT: 480 kg

Technical Characteristics / Specifications

• Series: M Series (Ship separators)
• Approvals: IACS member classification society approval
• Materials: Duplex stainless materials for corrosion resistance
• Seals: Designed for high‑temperature applications
• Optional: Outer body with thermal insulating coating available on request
• Operation: Continuous operation capable, low power consumption, fast discharge systems
• Applications: Diesel fuels, Heavy Fuel Oil (HFO), NATO fuels, SAE30, SAE40, high‑viscosity lubricating oils, industrial mineral oil treatment
• Model examples: MBA 3222‑PC35, MBA 3223‑PC35, MBA 3222‑P35, MBA 3223‑P35
• Installed motor power (typical): 5.5 kW - 11 kW (varies by product)
• Dimensions (typical): 1150 x 690 x 1170 mm
• Weight (typical): 480 kg
• Design features: Wear‑resistant design, fast and efficient discharge, compact or individual configurations
• Note: HAUS reserves the right to modify specifications without prior notice
