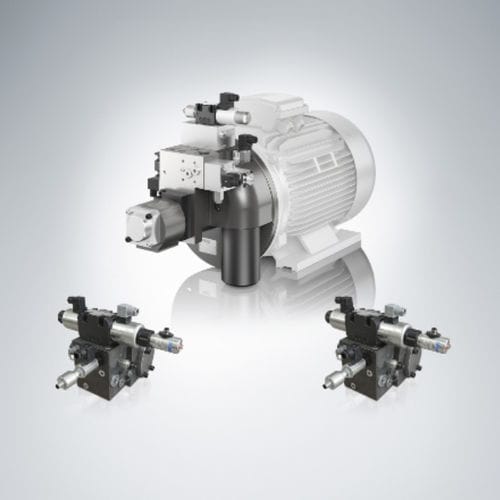

Hydraulic system for press brake MACB

Product description
The hydraulic press drive MACB comprises two cylinder blocks with integrated suction valves and a single pump module (MPLM). The pump module contains the internal gear pump, pressure filter, coupling and motor flange for direct mounting.
The proportional directional control valves mounted on the cylinder blocks enable precise synchronous control and deliver high positioning accuracy by increasing system rigidity.

Features and advantages

• Suitable for press brakes of any beam length
• Direct flange-mounting on standard motors for simple installation
• Includes internal gear pump, pressure filter, electric contamination indicator and coupling
• Anti-cavitation valves integrated in the manifold
• Certified according to DIN 12622

Intended applications

• Press brakes

Technical specifications

• Drive type: MACB (hydraulic press drive)
• Configuration: two cylinder blocks with integrated suction valves and one pump module (MPLM)
• Pump module components: internal gear pump, pressure filter, coupling, motor flange
• Control: proportional directional control valves on cylinder blocks for improved synchronous run and high positioning accuracy
• Manifold: integrated anti-cavitation valves
• Includes: internal gear pump, pressure filter and electric contamination indicator
• Installation: direct flange-mounting on standard motor
• Compatibility: suitable for press brakes of any beam length
• Certification: DIN 12622
