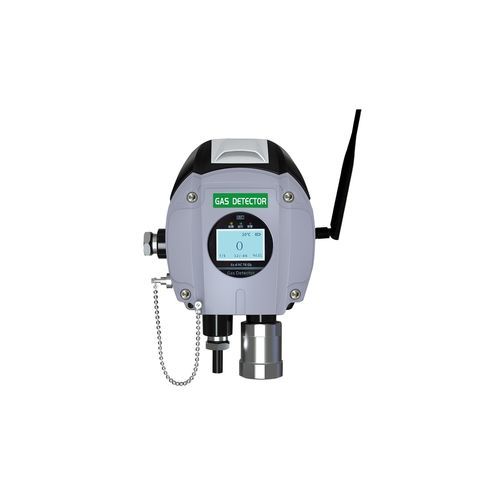

Gas detector HA-GF-310

flammable gastoxic gasammonia

HA-GF-310 liquid crystal display gas detector can display and monitor the gas concentration on site in real time. The on-site debugging adopts infrared remote control, and parameter settings can be made without opening the cover. HA-GF-310 gas detector can convert the concentration signal of leaked gas in the air into an electrical signal for remote transmission. HIGHLIGHTS Accurate measurement with minimal zero drift Explosion proof design Wireless remote control technology The instrument can be wirelessly transmitted and uploaded to PLC/DCS Natural diffusion detection Two sets of switch signals Optional valve well module Optional battery module Optional wireless transmission module Continuous monitoring in confined spaces Modular sensors make replacement more convenient APPLICATION HA-GF-310 is primarily used in environments such as gas stations, refueling stations, and storage and transportation warehouses for flammable and explosive gases, where gas concentration and gas leakage need to be detected. SPECIFICATIONS Detection method - natural diffusion Detection principle - catalysis; electrochemistry; semiconductor; infra-red; PID Detection range - 0~100%) LEL; 0-****PPM Resolution - 1% LEL; 1PPM/0.1PPM Display - LCD display with digital display Response time - Flammable:<15s; Toxicity:<60s Working environment - -40 ℃~70 ℃ (flammable) -20 ℃~50 ℃ (toxic); Humidity:<93% RH - Output signal - Total score composite, 4-20mA+HART (low alarm, high alarm, fault switch output) Power consumption - ≤ 3W Alarm - Sound and light alarm Debugging method - controller
