Gas detector HA-LS-200

methanelaserscanning

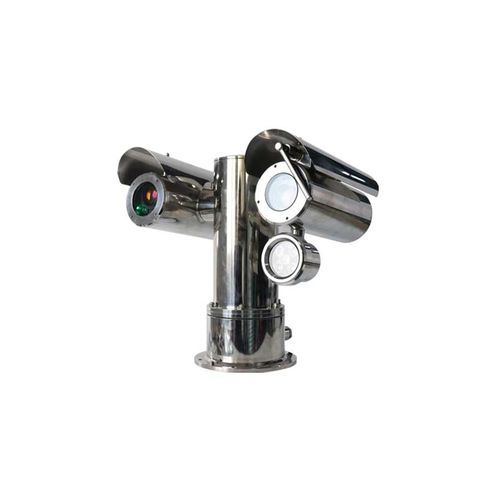

HA-LS-200 fixed scanning laser gas telemetry consists of two parts: controller and upper controller, based on the principle of laser absorption spectroscopy, the concentration of methane gas in the detection area of the laser transceiver can be monitored online and remotely in real time, and it have the functions of signal acquisition, conversion and transmission. HIGHLIGHTS Three-dimensional space active detection. Horizontal 360°, longitudinal 180° rotation scan. Camera synchronization capture. Background computer monitoring. APPLICATION This device is particularly suitable for monitoring methane gas. SPECIFICATIONS Detection method - TDLAS Detection range - 0-5000ppm Sensitivity - 5ppm.m Detection effective distance - 0-100 meters Response time - 0.5 seconds Working power - DC12V～28V Output interface - RS485 or 4-20mA Weight - 3kg Installation method - seat type installation environment - -40~+65°C, (0~90)% RH without condensation Protection level - IP68 Explosion-proof mark - Ex d IIC T6 Gb
