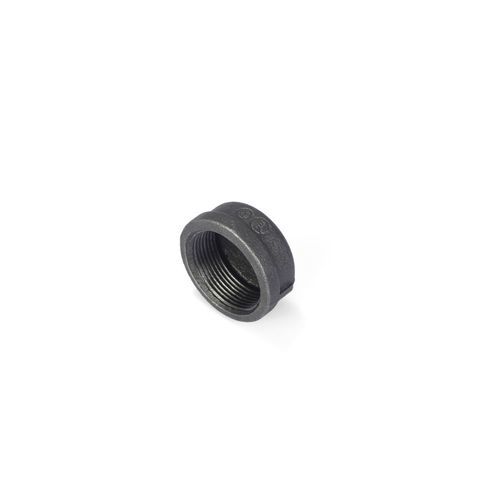

Threaded cap Fig.301
roundironfitting

Threaded cap - Fig.301 - Hebei Jianzhi Casting Group Co., Ltd. - round / iron / fitting
Threaded cap - Fig.301 - Hebei Jianzhi Casting Group Co., Ltd. - round / iron / fitting
Threaded cap - Fig.301 - Hebei Jianzhi Casting Group Co., Ltd. - round / iron / fitting - image - 2
Add to favorites
Compare this product

Characteristics

Type
threaded
Configuration
round
Material
iron
Applications
fitting
Other characteristics
oil, pressure
Diameter

Min.: 8 mm
(0.315 in)

Max.: 100 mm
(3.937 in)

Operating temperature

200 °C
(392 °F)

Description

Black Iron Cap Fittings Round Maximum Pressure: - 25 BAR (363PSI) (2.5MPA) CLASS 150 Tensile Strength: - 350MPA Suitable Applications: - Water, Oil, Gas, Petro-Chemical Product Description Do you know? We have 13 wareshouse to keep our storage. We keep a record in China pipe fitting business. We finish an 8-containers order in 3 days. Product Parameters Standard: - EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242 Threaded Standard: - EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226 Work Pressures： - PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar Certification： - UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI Technical Data Maximum Pressure: - 25 BAR (363PSI) (2.5MPA) CLASS 150 Tensile Strength: - 350MPA Hardness: - HB150 (Brinell) Elongation Rate: - 10% Suitable Applications: - Water, Oil, Gas, Petro-Chemical Material: - Malleable Iron
