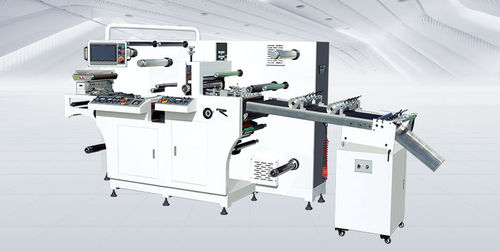

Die cutting machine WJJM-350Afor paperlabelmulti-function
Add to favorites
Compare this product
Characteristics
- Technology
- die
- Material
- for paper
- Product handled
- label
- Associated function
- multi-function
- Other characteristics
- rotary
- X travel
340 mm
(13 in)- Y travel
340 mm
(13 in)- Cutting speed
110,000 mm/min
(72.178 in/s)- Overall length
2,800 mm
(110 in)- Overall width
1,300 mm
(51 in)- Height
1,800 mm
(71 in)- Weight
3,000 kg
(6,613.87 lb)
Description
WJJM 350A multi-function intermittent rotary label cutting machine is researched and developed by Wanjie Machinery Equipment Co.,Ltd,which is used for printed label processing.The machine is module design, which adopts rotary die-cutting mode.It can realize In-mould-label, Copper printing paper label full cutting (have automatic convey and collection platform) and adhesive paper intermittent cutting , can exchange between this two ways.The machine can use for adhesive label intermittent cutting or full rotary cutting, also can use for IML,Copper printing paper label full cutting. Can equipped with flexo spot varnishing,full-plate varnishing, UV glue laminating,spot cold stamping, inkjet code, slitting, longitudinal cutting and reverse laminating,etc.
Accuracy of adhesive Cutting: ±0.15mm
Paper Width: 100-350mm
Max Unwinding Dia.: ø700mm
Max Rewinding Dia.: ø700mm
Magnetic Cylinder: 120Teeth 1/8”CP
Repeat Length of Die Cutting: 60mm~350mm
