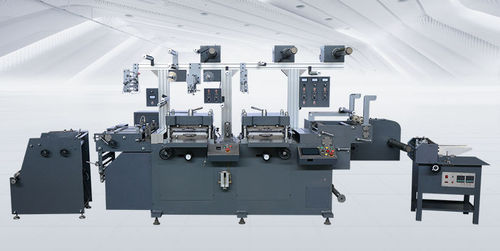

Die cutting machine WJMQ-350
for paperlabelmulti-function

Die cutting machine - WJMQ-350 - Hebei Wanjie Machinery Technology Co., Ltd. - for paper / label / multi-function

Add to favorites

Compare this product

Characteristics

Technology: die
Material: for paper
Product handled: label
Associated function: multi-function
Other characteristics: high-precision, rotary
X travel: 340 mm
(13.39 in)
Y travel: 340 mm
(13.39 in)
Overall length: 4,425 mm
(174 in)
Maximum width: 1,280 mm
(50 in)
Height: 1,840 mm
(72 in)
Weight: 4,000 kg
(8,818.49 lb)

Description

● The machine adopts flat-bed mode and the material runs stably. ● Servo motor controls the driving to ensure precise material transportation. ● The machine has auto edge correction and electric eye tracer which ensure high precise die-cutting. ● It can do die-cutting, waste-off, sheeting and rewinding in one process. ● It is optional for the machine to add separate unwinding unit, lamination, stamping and punching. ● Multi-function design makes the machine fit for adhesive, Nylon, laser anti-counterfeit and blank label die-cut. It is a complementary equipment for rotary label printing machine, flexo printer, screen printer etc. Max. Unwinding Dia: 600mm Max. Paper Width: 350mm Die-cutting Precision: ±0.1mm Main Power: 5.5kw Supply Voltage: 220V±10%
