Die cutting machine WJMQ series
for cardboardmulti-function

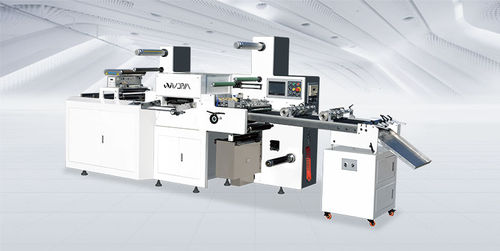

Die cutting machine - WJMQ series - Hebei Wanjie Machinery Technology Co., Ltd. - for cardboard / multi-function

Die cutting machine - WJMQ series - Hebei Wanjie Machinery Technology Co., Ltd. - for cardboard / multi-function - image - 2

Add to favorites

Compare this product

Characteristics

Technology: die
Material: for cardboard
Associated function: multi-function
X travel: 340 mm
(13.39 in)
Y travel: 340 mm
(13.39 in)
Overall length: 3,000 mm
(118 in)
Maximum width: 1,200 mm
(47 in)
Height: 1,500 mm
(59 in)
Weight: 3,200 kg
(7,054.79 lb)

Description

• The machine can die-cut both sticker and cardboard . • The machine adopts flat-bed mode and the material runs stably. • It can do lamination,die-cutting ,waste-off,full-cut and rewinding in one process. • Independent servo motor driving,it can realize embossing. • Ultrasonic web-guide Max Machine speed: 350Times/Min Die-Cutting Precision: ±0.15mm Max unwinding width: 100-350mm Max unwinding diameter: Ø700mm Max rewinding diameter: Ø600mm Main power: 8.8kw
