Tool cabinet M7 series

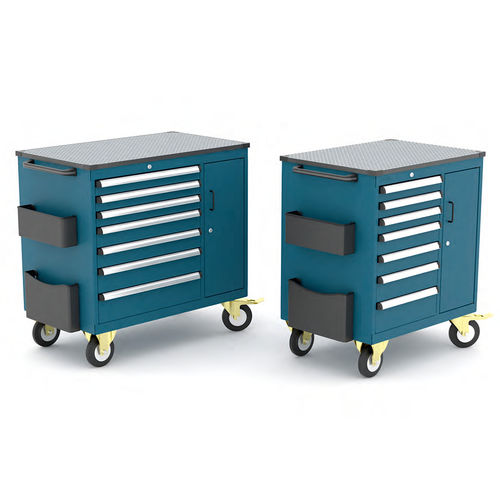

Heavy duty workshop trolley with 7 drawers and 1 door with anti-tilt system. Structure in sheet metal 1mm thick and reinforced inside with sheet metal 2mm, all welded by resistance, painted in hammered blue color, dried in the oven before degreasing and phosphating. The cabinet structure is divided into two parts, left side drawers in 1.2mm thick sheet metal from our Ref. 122 (See catalogue) and right side with a keyed door and handle to facilitate opening and closing, inside served with a tray. The same key opens the drawer side and the door side. The entire drawer contour is grooved so that it can be subdivided with dividers every 14 mm. The slides welded to the sliding drawers are made of 2 mm thick sheet metal. The slides fixed to the 3 mm thick sheet metal frame. The drawers are manufactured to support a distributed load of 100 kilos. (90% opening). 2 anodized aluminium handles of great resistance and screwed to the trolley. The upper part with a 30 mm thick DM tray, Pirelli type rubber covering and field guard. Resistant to oils and greases. 4 rubber wheels 150 mm in diameter, easy to move, two fixed wheels and the other two swivel wheels with brakes.
