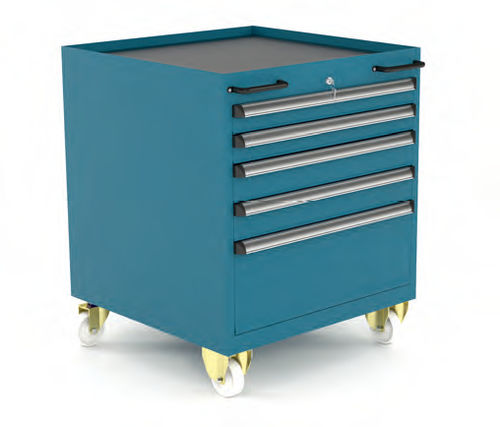

Tool cabinet 115 M, 119 M, 135 M series

tool cabinet
tool cabinet
tool cabinet
tool cabinet
tool cabinet
tool cabinet
tool cabinet
tool cabinet
tool cabinet
tool cabinet
Add to favorites
Compare this product


Description

Workshop trolley with drawers mounted with anti-tilt system which allows the opening of only one drawer. Central locking. 1mm thick sheet metal structure, supports to fix the 2mm thick sheet metal drawer slides, all resistance welded painted in hammered blue colour, dried in the oven before degreasing and phosphating. Drawers made of 1.5mm thick sheet metal and fitted all around every 14mm. Single slides of 100Kg (90% opening) with ball bearings and 1.5mm thickness fixed to the frame. The drawers are served assembled according to the chosen combination. Drawers do not include dividers. Aluminium drawer label holder. Delivered with 2 fixed and 2 swivel rubber wheels, diameter 100mm. Worktop with grooved synthetic rubber coating. Distributed load 660Kg.
