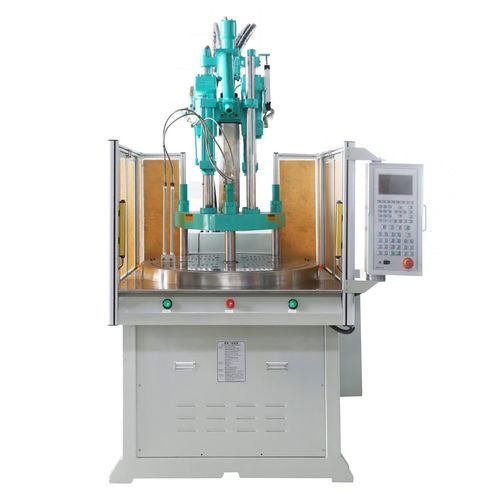

Not specified injection molding machine JWD-I450R
hydraulicfor PPfor PA

Not specified injection molding machine - JWD-I450R - Hefei Better Technology Co., Ltd. - hydraulic / for PP / for PA

Add to favorites

Compare this product

Go to the Hefei Better Technology Co., Ltd. website for more information

Characteristics

Closure

not specified

Operation

hydraulic

Treated material

for PP, for PA, for PC, for PVC, POM, for PBT, for ABS

Other characteristics

rotating table

Clamping force

Max.: 441 kN

Min.: 441 kN

Description

Overview
Automatic injection molding machine for heavy engineering plastics (ABS, PVC, PA, PP, PC, POM, PBT, fluorocarbon). Designed for rotary-table transfer and medium-to-high volume production.

Model
JWD-I450R

Injection unit
Screw diameters: ∅30 / ∅32 / ∅34 mm. Theoretical injection volume: 98.9 / 112.5 / 127 cm³. Injection weight (PS): 93.5 g (3.3 oz) / 106.3 g (3.75 oz) / 120 g (4.23 oz). Max injection pressure: 170.8 / 150 / 133 MPa (1742 / 1531 / 1356 kgf/cm²). Injection rate: 79.8 / 90.8 / 102.5 cm³/s. Injection speed: 113 mm/s. Injection stroke: 140 mm. Screw speed: 0–190 RPM. Temperature control zones: 3. Nozzle-to-platen clearance: ≥45 mm.

Clamping unit
Clamping force: 441 kN (45 t). Clamping stroke: 200 mm. Minimum mold thickness: 150 / 250 mm. Max opening: 350 / 450 mm. Max mould size (W×L): 300×300 mm or 450×250 mm. Rotary table diameter: ∅880 mm. Ejector stroke: 75 mm. Ejector force: 26.5 kN (2.7 t).

Other
System pressure: 13.7 MPa (140 kgf/cm²). Oil tank capacity: 230 L. Electric power: 7.5 kW (10 HP). Heater power: 3400 W. Machine dimensions (W×L×H): 1.5 m × 2.24 m × 2.23–2.86 m. Machine weight: 2500 kg.

Technical specifications

Supported materials: ABS, PVC, PA, PP, PC, POM, PBT and other heavy engineering plastics
Model: JWD-I450R
Screw diameters: ∅30 / ∅32 / ∅34 mm
Theoretical injection volume: 98.9 / 112.5 / 127 cm³
Injection weight (PS): 93.5 g (3.3 oz) / 106.3 g (3.75 oz) / 120 g (4.23 oz)
Max injection pressure: up to 170.8 MPa (1742 kgf/cm²) depending on screw
Injection rate: up to 102.5 cm³/s
Injection speed: 113 mm/s
Screw speed: 0–190 RPM
Temperature control zones: 3
Nozzle-to-platen clearance: ≥45 mm
Clamping force: 441 kN
Clamping stroke: 200 mm
Mold thickness range: min 150 / 250 mm
Max opening: 350 / 450 mm
Max mould size: 300×300 mm or 450×250 mm
Rotary table diameter: ∅880 mm
Ejector stroke: 75 mm; ejector force: 26.5 kN
System pressure: 13.7 MPa (140 kgf/cm²)
Oil tank capacity: 230 L
Electric power: 7.5 kW (10 HP)
Heater power: 3400 W
Machine dimensions (W×L×H): 1.5 m × 2.24 m × 2.23–2.86 m
Machine weight: 2500 kg
