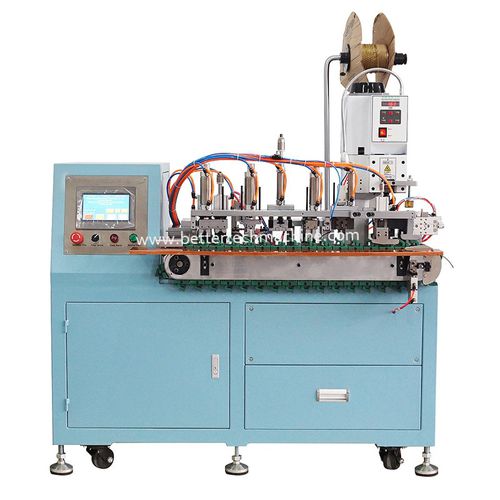

Connector crimping machine JWD-TG6580S

automatic

Automated shark teeth terminal connector riveting machine JWD-TG6580S is perfect for cable jacket stripping and shark tooth crimping on H03VVH2-F cable amd H05VVH2-F cable, it can fully automatic complete cable feeding , conductor stripping, cable cutting, and shark teeth terminal connector crimping in one stop. • Automated shark teeth terminal connector riveting machine is widely applied for electrical plugs’ tail cables stripping and crimping. • JWD-TG6580S is perfect for cable jacket stripping and shark tooth crimping on H03VVH2-F cable amd H05VVH2-F cable, it can fully automatic complete cable feeding , conductor stripping, cable cutting, and shark teeth terminal connector crimping in one stop. • The whole power cord plug procssing machine is controlled by PLC. • Function : Fully automatic complete cable feeding , conductor stripping, cable cutting, and shark teeth terminal connector crimping in one stop • Conductor diameter : 4-12mm • Max processing capability : 2300-2600 pcs/h • Yield : ≥99% • Air pressure : 0.5-0.8MPa • Machine dimension : L1170mmxW560mmx H1470mm
