Housing assembly machine JWD-TG6FB100semi-automaticconnectorfuse
Add to favorites
Compare this product
Characteristics
- Operational mode
- semi-automatic
- Applications
- connector, housing, fuse
- Other characteristics
- compact
Description

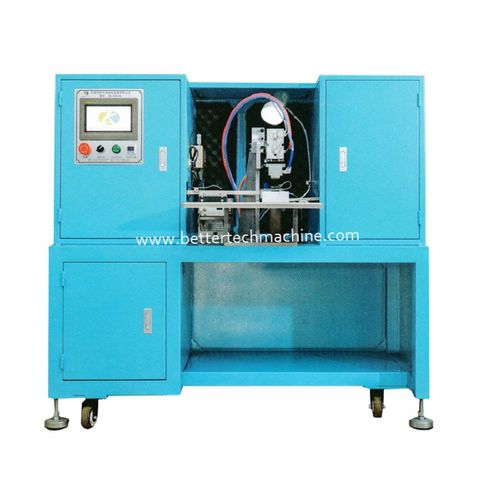

UK Plug Mounted Fuse and Connector Housing Assembly Machine
• Semi automatic uk head mounted fuse and insurance cover assembly machine JWD-TG6FB100 equipped vibrating plate automatic feeding system, HMI and PLC ensure the assembly machine run semi automatically and easier to operate it.
• JWD-TG6FB100 can complete vibrating disk feeding and assembly Mounted Fuse and Insurance Cover in one stop.
• It is suitable for 2 core cable and 3 core cable.
• 1 year warranty
• Fast delivery
• Technical team support and reliable aftersales service
• Function : Vibrating disk feeding, plug fuse and insurance cover assembly
• Conductor stripping length : 4-12mm
• Crimping force : 3 ton
• Max processing capability : 1300-1500 pcs/h
• Yield : ≥99%
• Air pressure : 0.5-0.8MPa
• Power : ≤1KW
• Power supply : AC220V/50Hz
• Machine weight : 310kg
• Machine dimension : L1300mmxW600mmx H1208mm
