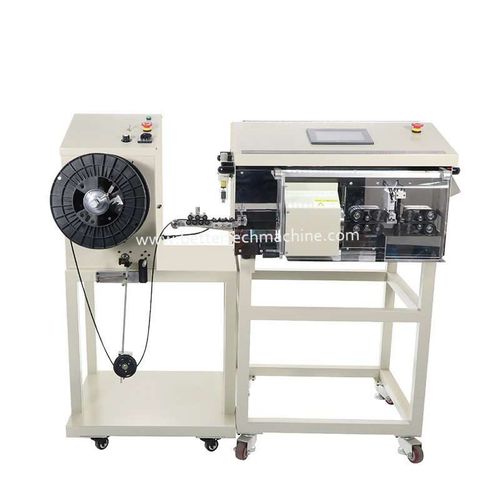

Coaxial cable stripping machine JWD-WS9610S

wireautomatic

Fully automated wire stripping machine JWD-WS9600S is suitable for semi-flexible, flexible coaxial line and single-core wire processing in base station antenna. • The fully automatic wire stripping machine is suitable for coaxial cables with diameters from 1mm to 5.5mm. Other size cable need choose customization. • The JWD-WS9600S solves the frustration of stripping multi-layer shielded cables by easily stripping up to 6 layers of shielding. • Wire stripping machine is mainly used for coaxial cable, triaxial cable, shielded cable, TV signal cable, RF coax, automotive cable, new energy vehicle charging pile, audio cable, antenna, etc. • Bettertech emphasizes the safety of the user and the coax stripper is equipped with a transparent protective cover. The cover covers the working area of the machine, which protects the operator away from dangerous elements. • The products are widely used in the field of connectors and RF antennas in communication equipment, automotive, medical, new energy and other industries. • Applicable cable type : Coaxial cable, Single core wire, Automotive cable, Shielded cable, etc. • Output : 300~850 pcs/h(depending on cable type and length) • Stripping length : R:~100MM; L:~45MM • Stripping layer amount • 1~6 • Cutting precision : 0.01MM • Stripping precision : 0.01MM • Cutting Length : 50~9999MM • Storage data : 99 group • Display : Touch screen • Driving : Motor \ ball screw drive • Power : 800W • Power supply : AC220V/110V 50/60HZ • dimension : 790x730x400MM LxWxH • Weight : 120Kg
