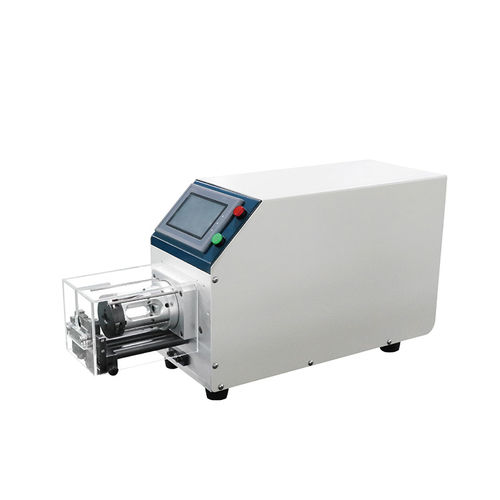

Coaxial cable stripping machine JWD-WS7806A

cablesemi-automatic

This machine is mainly used for coaxial cable, triaxial cable, shielded cable, TV signal cable, RF coax, automotive cable, new energy vehicle charging pile, audio cable, antenna, etc. • The stripper is semi-automatic and is suitable for coaxial cables with diameters from 1.5mm to 9.5mm, with a maximum stripping length of 65mm. • The JWD-WS6806D solves the frustration of stripping multi-layer shielded cables by easily stripping up to 9 layers of shielding. • Bettertech emphasizes the safety of the user and the coax stripper is equipped with a transparent protective cover. The cover covers the working area of the machine, which protects the operator away from dangerous elements. • The products are widely used in the field of connectors and RF antennas in communication equipment, automotive, medical, new energy and other industries. • Applicable cable type : Coaxial cable, Single core wire, Automotive cable, Shielded cable, etc. • Output : 700~1200 pcs/h(depending on cable type and length) • Stripping length : 0.1~65MM • Stripping layer amount 1~9 • Cutting precision : 0.01MM • Stripping precision : 0.01MM • Cutting method : Rotary Stripping • Blade : 4pcs • Storage data : 99 group • Display : Touch screen • Driving : Motor \ ball screw drive • Power : 400W • Power supply : AC220V/110V 50/60HZ • dimension : 600x185x280MM LxWxH • Weight : 24Kg
