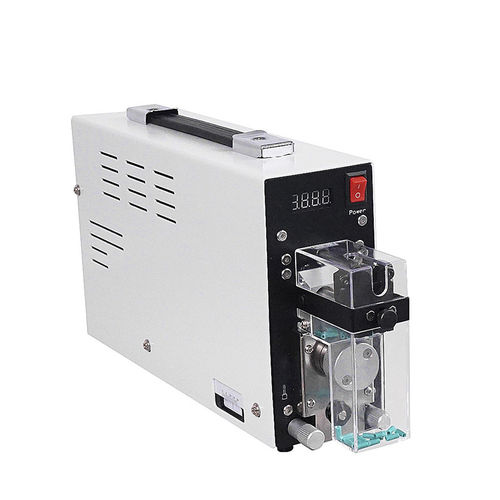

Electrical cable stripping machine JWD-WSF7D

optical fiber cablewireelectric

The copper wire stripping machine JWDWSF7D enable strip 0.03-4.0 mm² (32AWG-11AWG ) cable. It is fully electric driving and widely applied in cable processing before wiring harness assembly. • The wire stripping machine is fully controlled by electric driving, it can cut and strip at high precision. • Maximum stripping length is up to 20mm. • The wire stripping machine is suitable for 0.3-4mm² solid wire, single core cable, electrical wire, electrical cable, rubber cable, PUR wire, PVC wire and Teflon wires. • It stes up by pedal, adjusting by spin button. • Wire types : Wire insulation PVC, Teflon, silicone, glass, fiber • Function : Strip • Cycle time : Approx. 0.5s • Cross section area : 0.03-4.0 mm² (#32-11 AWG) • Function : Stripping for cable or wire harness • Strip length : Full strip length min. 0.5mm; Part strip length 6mm • Strip length max. : 20mm • Control method : knob • Precision of Diameter Setting : 0.01mm • Air pressure : 0.5Pa-0.8Pa • Power : 200W • Power supply : 110V/220V 50Hz • Weight : 6kg • Dimension : 380mm x 85mm x 188 mm
