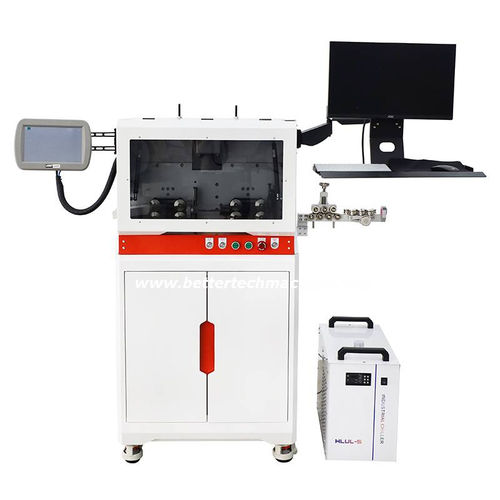

Wire cutting and stripping machine JWD-SM603

bladeUV laserprogrammable

Product overview
Our fully automatic wire cutting, stripping and UV laser marking machine JWD-SM603 is designed for high-efficiency wire harness processing in industrial environments. It integrates precise cutting, non-destructive insulation stripping and high-speed UV laser marking with MES-based job dispatch to enable automated production workflows.

Model
JWD-SM603

Brand
BETTERTECH

Key features

• Applicable cable size: 0.75–30 mm² (max Φ18) — single-core wires, multi-core cables, shielded cables, PVC and other electrical wires
• Laser system: UV laser marking (5 W) for high-speed, non-contact marking; supports vector fonts, barcodes, QR codes, logos and variable data
• MES integration: Seamless integration for automatic job dispatch and execution to support smart factory workflows
• Production capacity: Up to 3500 pcs/h (dependent on wire size and length)
• Marking modes: fixed-point, fixed-distance, continuous marking and dump printing of fonts

Applications

• Precision electronic wiring harnesses (e.g. mobile phone cables, medical equipment) requiring non-destructive stripping and micron-level marking
• Automotive wiring with high-temperature and corrosion resistance marking requirements
• Industrial batch processing of cables to increase throughput and reduce labor costs

Samples
Sample marking and stripping examples available (sample images provided on the product page).

Technical specifications

• Machine type: Automatic cable cutting, stripping and laser marking machine
• Model: JWD-SM603
• Functions: Cable cutting, insulation stripping, UV laser marking, MES system
• Applicable wire: Single-core wire, multi-core cable, shielded cable, electric wire, PVC wire
• Capacity: 3500 pcs/h (depending on wire length and size)
• Cable size: 0.75–30 mm² (max Φ18)
• Laser type: UV laser
• Laser power: 5 W
• Printing diameter: 1–16 mm
• Marking speed: 10–7000 mm/s
• Minimum character height: 0.2 mm
• Marking methods: Fixed-point, fixed-distance, continuous, dump printing fonts
• Full stripping length: Front 1–200 mm; Tail 1–100 mm
• Half stripping length: Front 1–1500 mm; Tail 1–300 mm
• Cutting length: 1–999999.9 mm
• Cutting tolerance: ≤ 0.002 × cutting length
• Blade material: Imported high-speed steel
• Drive method: Servo motor and precision-ground lead screw
• Feeding method: Crawler-type feeder (no scratches)
• Air source: 0.5 MPa
• Power supply: AC 220V 50/60Hz (optional 110V)
• Dimensions: 707 × 590 × 1440 mm
• Weight: 140 kg
• Cooling: Water cooling with automatic overheat detection
• Operating conditions: 10–40 °C; relative humidity ≤ 90% (no condensation)
• Marking options: Date, time, variable text, serial number, barcode, QR code, pattern
