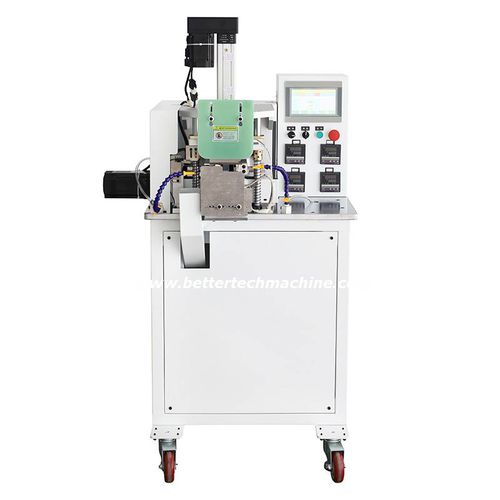

Busbar stripping machine JWD-WSH730

electricpneumatic

Electric Copper Busbar Insulation Stripping Machine Busbar insulation stripping machine is a specialized piece of equipment designed for efficiently and accurately stripping the insulation from busbars. Busbars are conductive bars or strips typically made of copper or aluminum, used to distribute electrical power within electrical enclosures, switchgear, and other electrical systems. Insulation stripping machines are used in industries such as electrical engineering, power distribution, and panel manufacturing, where busbars are commonly used. • Wide Stripping Range: From 5mm to 200mm in length, 10mm to 80mm in width, and 1mm to 8mm in thickness, Bettertech pneumatic busbar insulation stripping machine also can be customized to meet your unique stripping requirements. • Operator Safety: With an integrated emergency stop feature and a front-end isolation plate, we prioritize the safety of your operators, providing peace of mind during operation. • Application : Removing the insulation cover of metallic busbar • Driving : Electrical • Stripping length : 2MM – 150MM • Copper busbar width range : 10MM – 50MM • Copper busbar thickness range : 1MM – 8MM • Power supply : AC 220V • Dimension : 1100mm×650mm×580mm • Remark : Need Sample test before order
