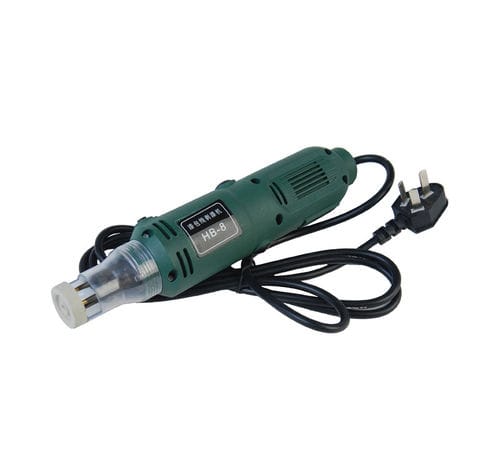

Enameled wire stripping machine JWD-BQH8

blademanualportable

JWD-BQH8 enameled wire scraper machine is designed for single core wires with insulating paint, enamel paint, ML, Isonel, etc. Ideal for wire harness processing company to use. • Enamel wire scraper machine JWD-BQH8 is a small size wire stripping tool that improves the efficiency of enameled singlecore wire processing. It has a capacity of about 600 wires/hour and is especially suitable for electronic wire harness manufacturers. • This hand-held electric enameled wire scraper works by rotating scraping the wire with three claw-shaped blades. • Scraping wire diameter : 0.5-3mm • Scraping length: 2-50.0mm; • According to the different thickness of the enameled wire diameter, adjust the speed of the blade: the finer the wire diameter, the lower the speed needs to be adjusted, the thicker the wire diameter, the faster the speed needs to be adjusted. • Function : Removing wire paint covering (single core wire) • Rotating speed : 0~10000 r/min • Stripping paint length : 2mm-50mm • Accessories : Three-jaw cutter head,Shields, Switches, Brushes • Optional wheel : Tapered nylon fiber wheel • Power : 25W • Power supply : 220V 50Hz (110V customization) • Dimension : L55mm×W55mm×H255mm • Machine weight : 0.75kg
